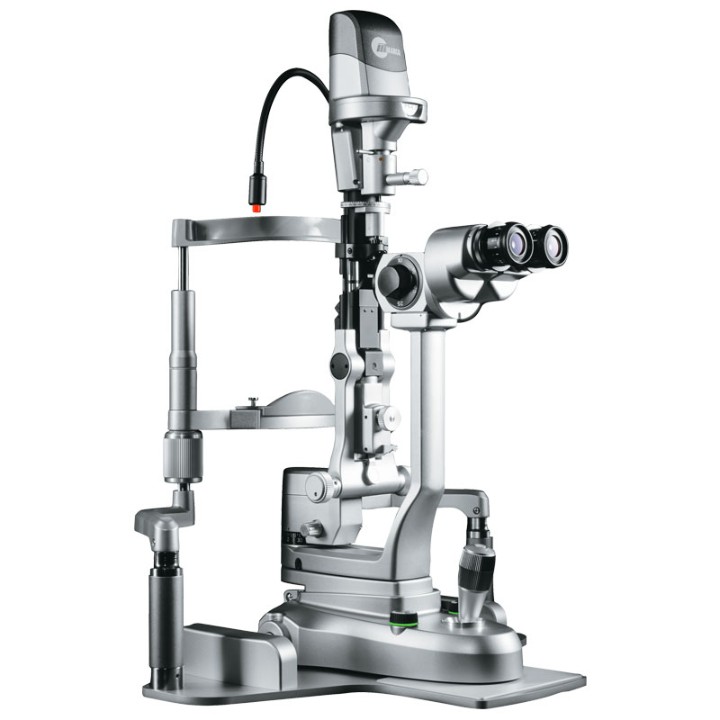

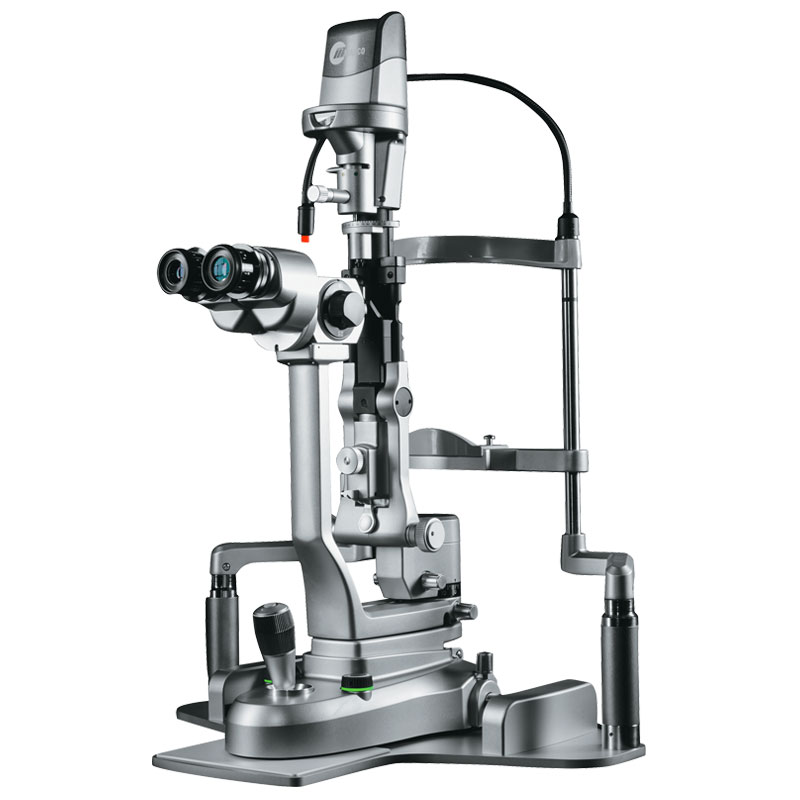

Ultra M5 Slit Lamp

Ultra M5 Slit Lamp

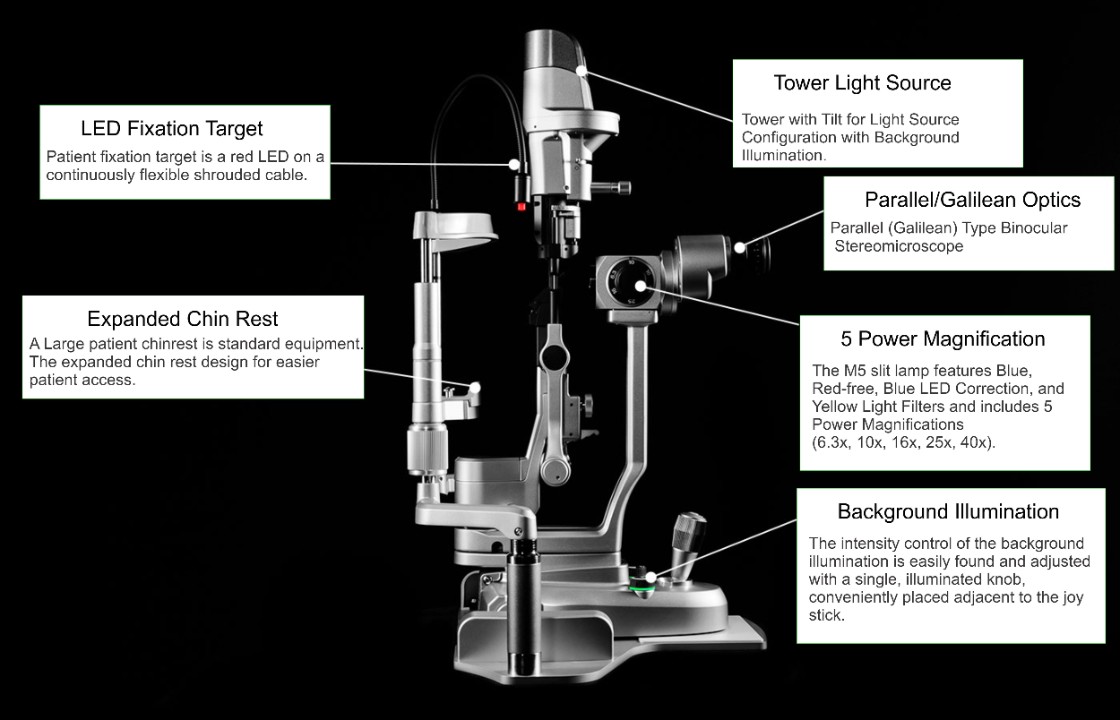

Our Ultra M5 slit lamp uses parallel (galilean) type binocular stereomicroscope configured with tower light source with tilt and background illumination. The M5 conventional slit lamp also features blue, red-free, blue LED correction, and yellow light filters and includes 5 power magnifications (6.3x, 10x, 16x, 25x, 40x).

description

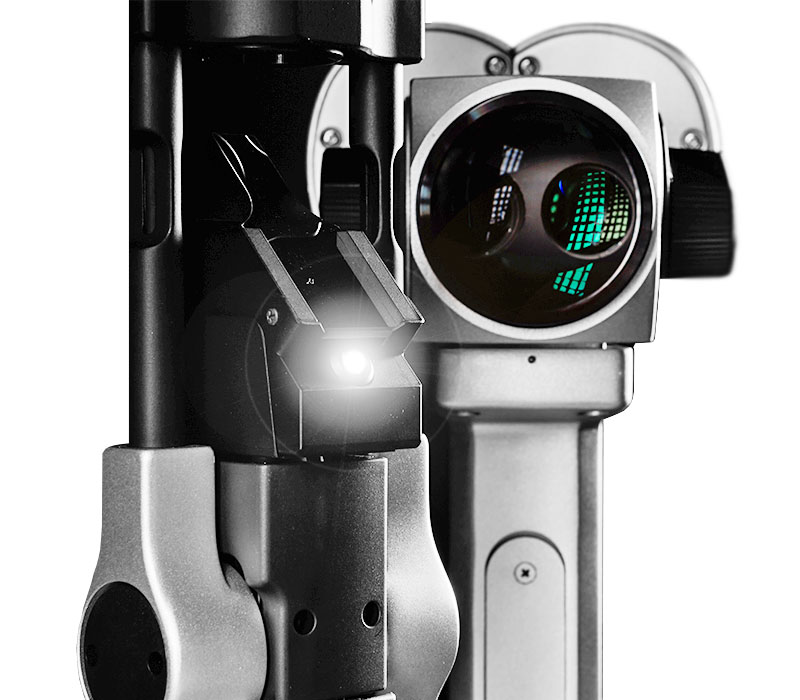

LED Illumination

The new LED illumination, with a color temperature of 3500 K, allows greater visibility and clarity of anatomy and tissue structure, with brighter and sharper light. A single element, high-luminance LED provides a beautifully consistent and uniform light compared to multiple element LEDs.

LED Illumination

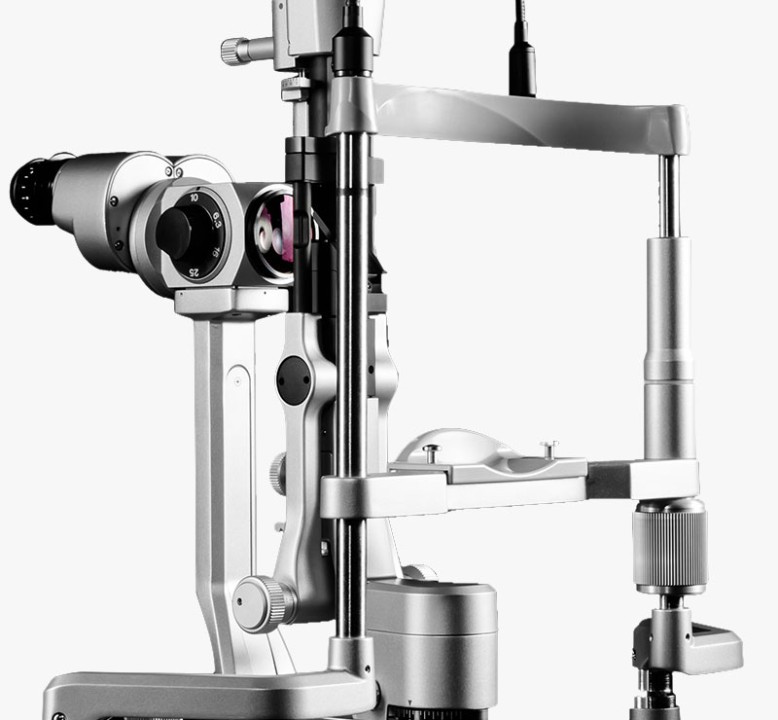

5 Power Optics

The M5 features 5-power Parallel / Galilean optics. The aperture diameter of the slit length has been extended, from 10mm to 14mm (continuously variable from 0-14mm), allowing a wider area of anterior segment illumination and also a wider field of view.

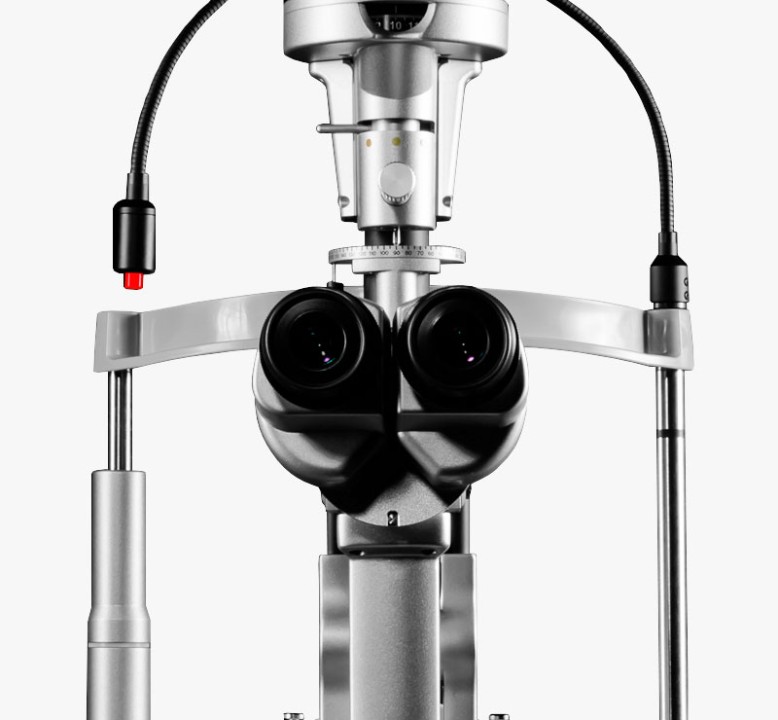

Cable Free Design

The Ultra M Series of slit lamps have eliminated visibly exposed cables. Even the power supply is fully concealed and the transformer is incorporated in the base-housing. The conventional power cable from the chinrest to the light housing has been eliminated- now neatly concealed within the slit lamp body.

Cable Free Design

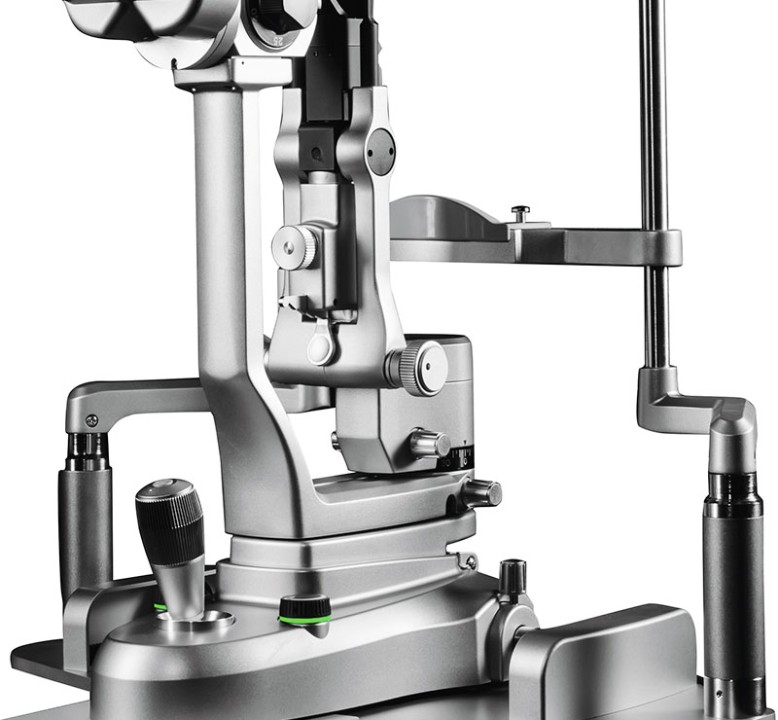

Self Contained Headrest

Self Contained Headrest

A Large patient chinrest is standard equipment with the Ultra M4 & M5, and provided as an optional accessory on the Ultra M2. Patient grips provide superior, comfort and positioning.

Specifications: Ultra-M5

Ultra M5 Slit Lamp Specs

Technical Details

Type Binocular Stereomicroscope Parallel (Galilean)
Light Source LED
Light Source Configuration Tower with Tilt
Background Illumination Yes
Light Filters Blue, Red-free, Blue LED Correction, Yellow
Slit Width 0-14mm continuous variable
Aperture Diaphragm Diameter (Ø) 14, 10, 5, 3, 2, 1, 0.2mm
Total # Power Magnifications 5 (6.3x, 10x, 16x, 25x, 40x)
Magnification Change 5 Position Rotating Drum
Eye Pieces 16x wide-field, high-eyepoint
Real Field of View (Ø) 35.9mm, 23.3mm, 14mm, 8.8mm, 5.5mm
Interpupillary Adjustment 52-82mm
Diopter Adjustment Range (+/-) 7 Diopters
Horizontal Coarse Movement 105mm
Horizontal Fine Movement 15mm
Vertical Movement 30mm
Fixation Light Source Red LED on Flexible Arm
Large Patient Chin Rest Yes
Chinrest Elevation 85mm

Power

Power Supply AC100V-240V (+/-10%)
Power Consumption DC5V 2A

Weight

Mass (Approximate) 12.5Kg
