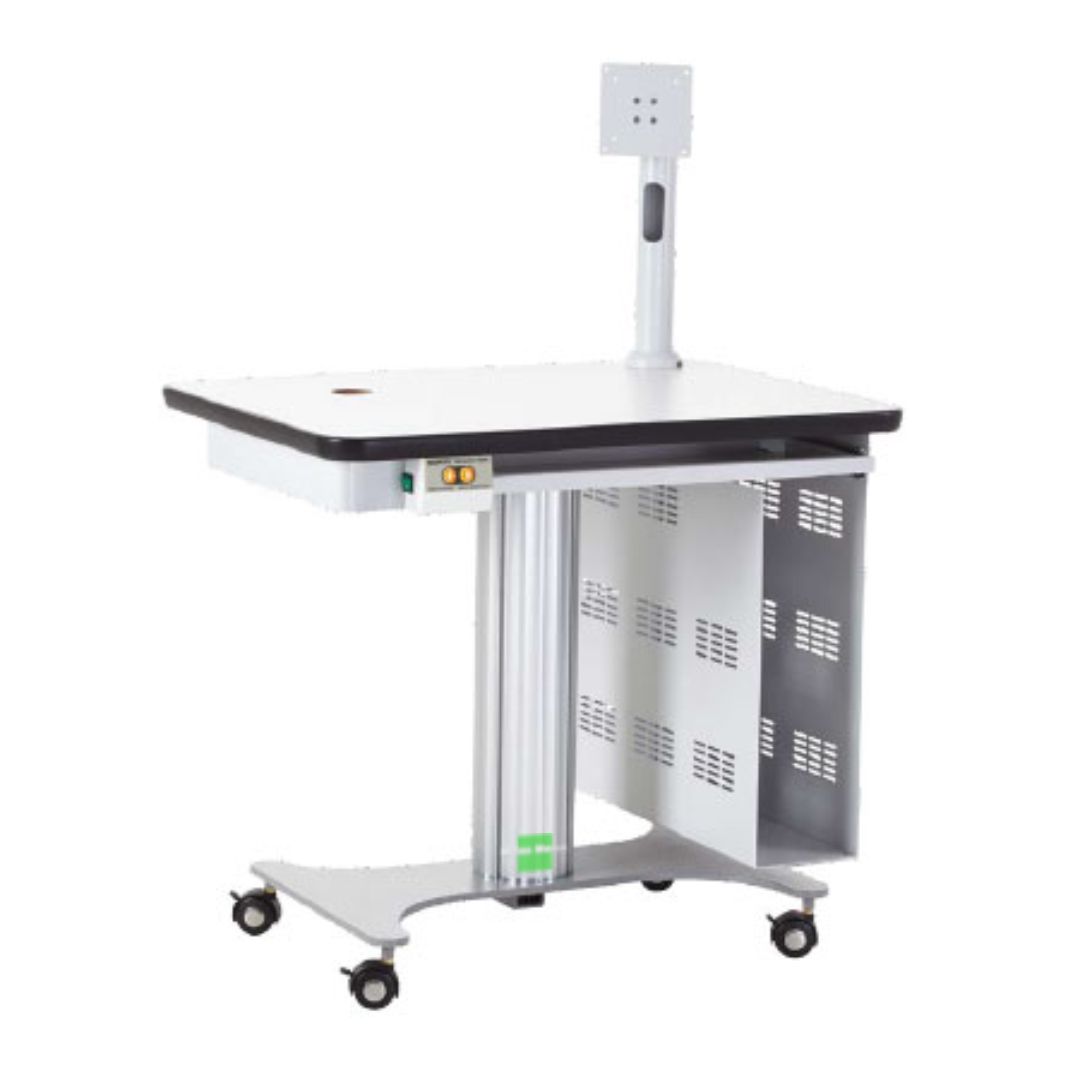

Single Instrument Table
Big Size Tabl
This unit table is best recommended for mounting a large size equipment like retina camera or OCT.
As well, its console box is very useful to put PC in.
LCD Monitor Fixture
This Fixture can be useful to hang LCD monitor for the instant check of the patient's eye conditions without any help of other appliances.
Up/Down Power Lifting
The height control of this table can be managed by Main Table Switch and Foot Pedal Switch at the same time.
Individually or both.

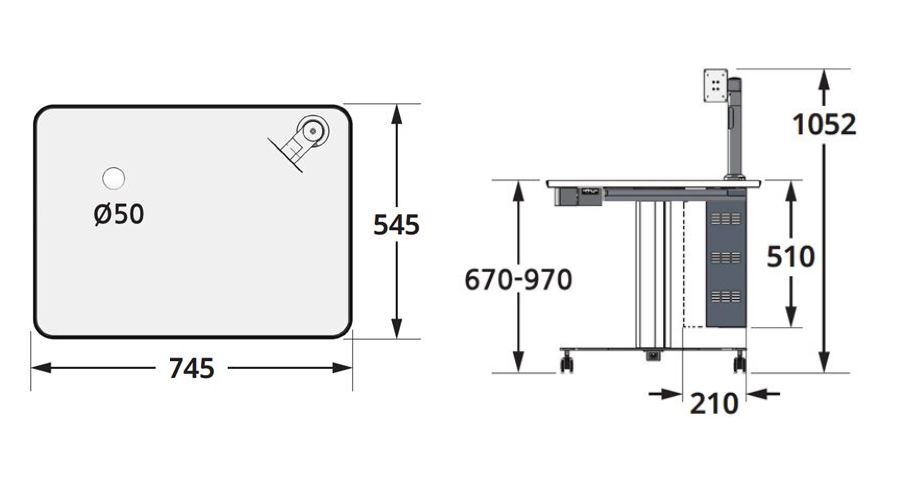

| Table External Dimension | 745(W)*545(D)*1052(H) |
| Table Size | 745*545mm |
| Computer Case Size | 210(W)*510(D)*510(H) |
| Table Height | Min.670 ~ Max.970 |
| Table Up / Down Speed | 300mm, 25mm/sec |
| Allowable Loading Weight of Table | 60kg |
| Keyboard Tray Size | 470(W) x 168(D) x 20(H) |
| Rated Voltage | AC110 or 230V / 50 or 60Hz |
| Power consumption | 50VA |
| Product Weight | 42kg |
