Cardioline touchECG HD+

Cardioline touchECG HD+

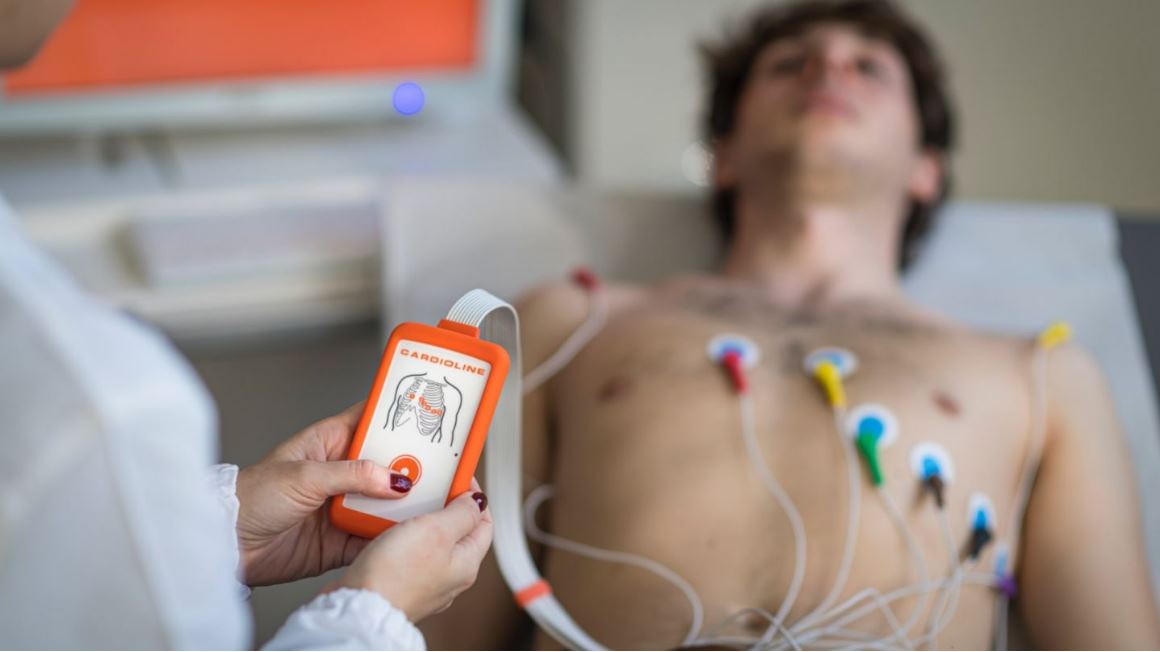

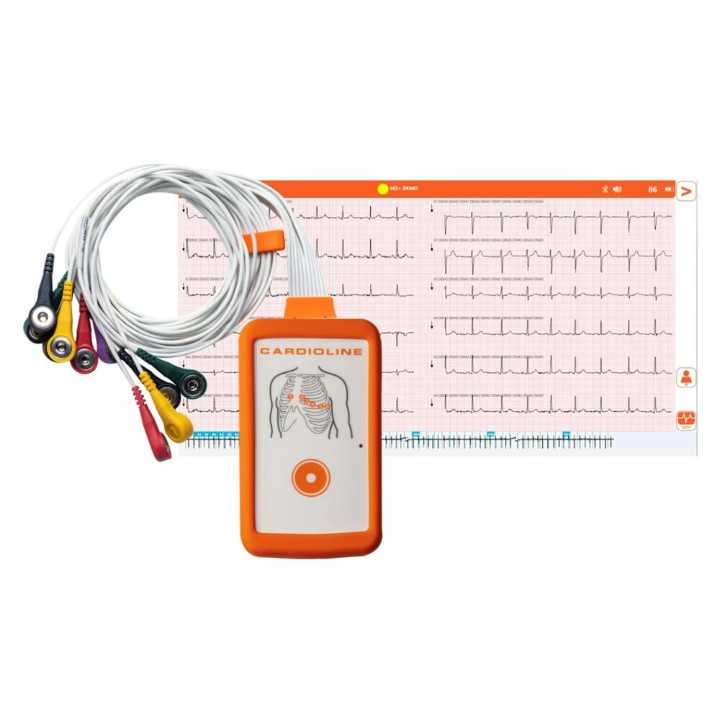

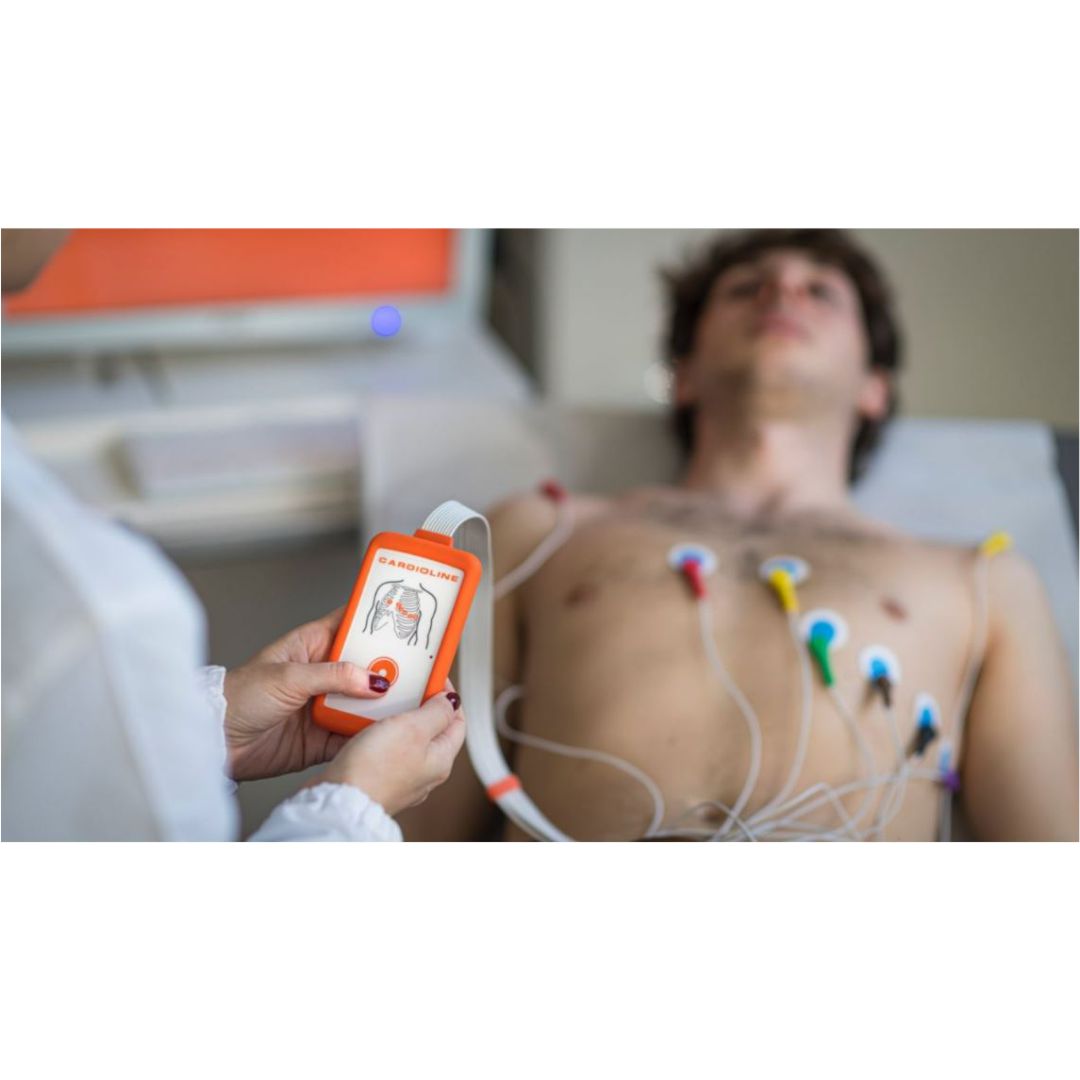

The Cardioline touchECG HD+ is a fully diagnostic 12 lead ECG acquisition unit, with a 10-wire patient cable. It is lightweight, wireless and rugged in design. Bluetooth integration with Riester telemedicine point of care stations (Cart and Case) makes ECG acquisition possible in clinic or on the go through integration into the DocsInClouds and AMD telemedicine software.

Application for use with the Riester telemedicine point of care stations

Intended use

The device function consists of acquiring and wirelessly transmitting ECG signal for displaying, processing, and presenting ECG signal for the purpose of supporting the diagnose of patient conditions.

HD+ is a wireless acquisition device, to be primarily used as common ECG front-end for PC/tablet (Windows/MAC OS/other) standard platforms, both for Resting ECG and Stress ECG applications. The device implements the wireless communication via Bluetooth wireless technology. Connected with a receiver via Bluetooth, HD+ sends the data to the host without making any analysis or filtering.

The ECG is transmitted verbatim to the receiving system, without LSB or sampling adjustment. HD+ is not intended to control or analyse heart function and/or to diagnose the patient's health status. The analysis program on the host is a separate product.

The results of the analysis must always be validated by qualified, trained medical personnel.

  • HD+ uses standard 12 lead ECG cable to acquire the physiological signal to the patient.
  • HD+ allows the patient to be ambulatory.
  • HD+ is intended to be used on adult and all paediatric patients.
  • HD+ is intended for use in a medical environment (hospitals, clinics and medical practices), in homecare or in an emergency environment (ambulances).
  • HD+ is intended for use by qualified, trained nurses and physicians.

Features of Cardioline touchECG HD+

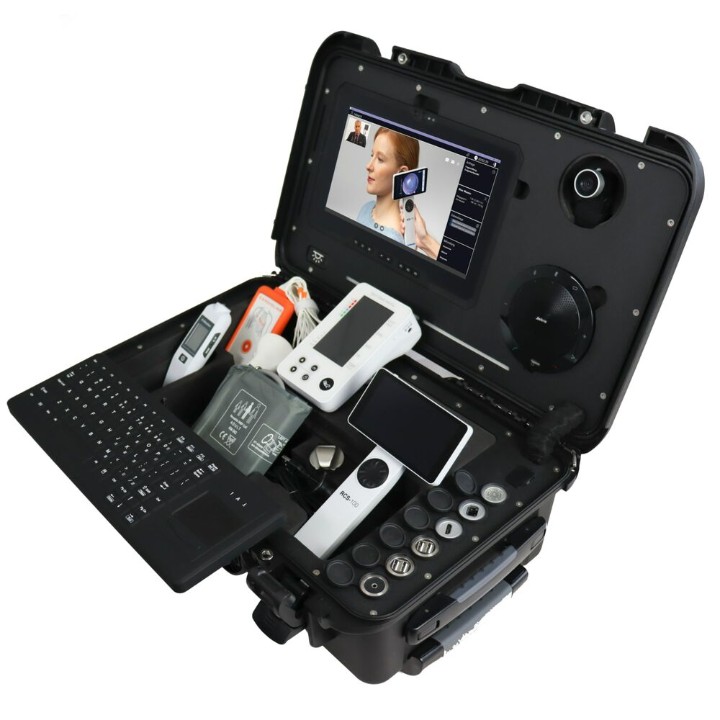

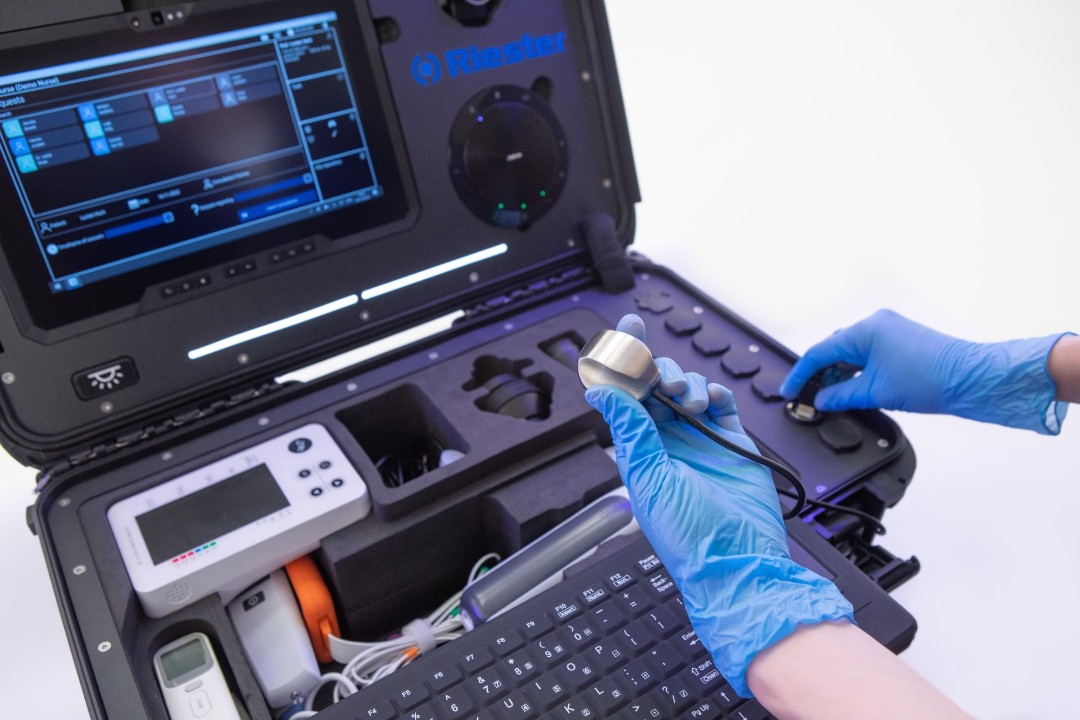

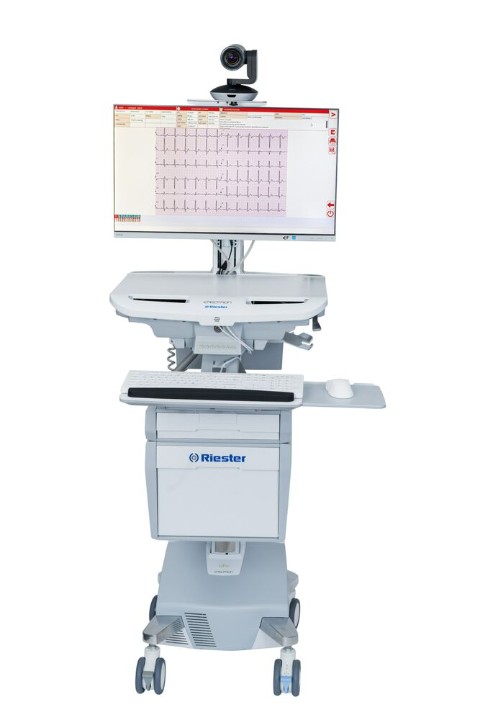

Seamless integration with Riester Telemedicine point of care stations

Cardioline touchECG HD+ seamlessly integrates with Riester’s Telemedicine stations and Telemedicine software solution partners.

Simultaneously capture and share ECG data in the Riester Telemedicing Stations integrated into DocsinClouds telemedicine software.

Specifications: Cardioline-touchECG-HD
ECG leads 12-leads (I, II, III, aVR-L-F, V1-6)
Bandwidth 300 Hz (@1000 m/s)
Pacemaker detection Hardware detection coupled with digital convolution filter
Defibrillation protection AAMI/IEC standard
Front-end performance ANSI/AAMI IEC 60601-2-25:2011
Data transfer Bluetooth 2.0+ EDR with "secure pairing"
Lead-fail detection Independent for all leads
Compatible devices Cardioline touchecg, Cardioline cubestress.
Power supply 2 AAA standard batteries
Battery Duration More than 500 ECGs
Dimensions 115 x 65 x 15 mm
Weight < 90 g, including batteries
Protection against harmful ingress of water IP40 /IP42
