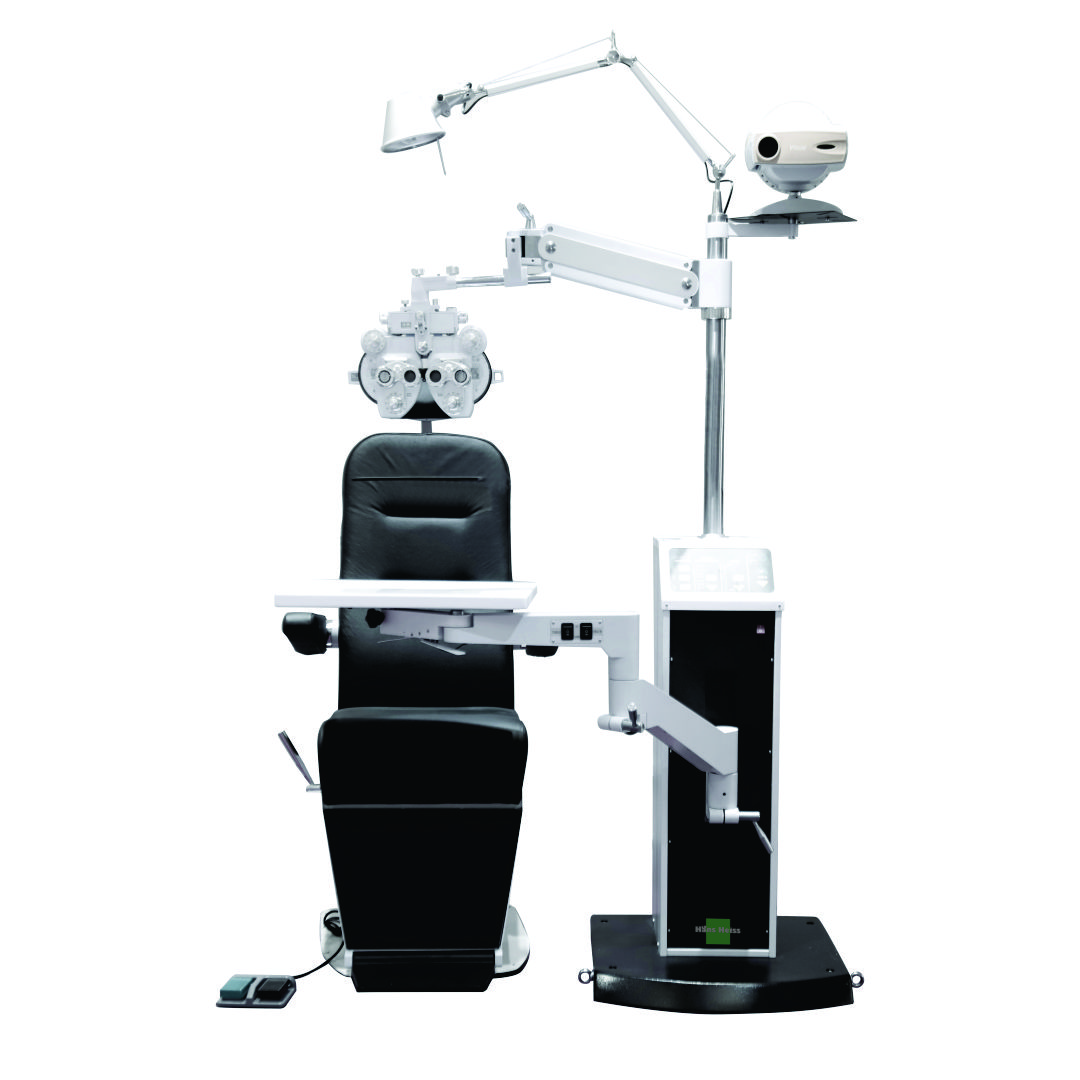

HHOU 7025 Ophthalmic Refraction Chair Unit
Chair & Stand (Unit)
Inquiry About this product
FEATURES
Recline bar control is available to fully tilt the chair to a maximum angle of 90 degrees.
Upholstered armrests for confort.
One chair lock allows for max 360 degrees rotation.
Fully rotary and counterbalanced slit lamp arm.
Overhead lamp whith 7 levels of adjustable brightness.
3 charging ports for multiple devices charging.
3 ways to control the elevation of the table
Multiple head rest positions to ease of comfort.
Fixation screws available for the chair and stand base to make it more stable.
Foot pedal include as standart configuration.

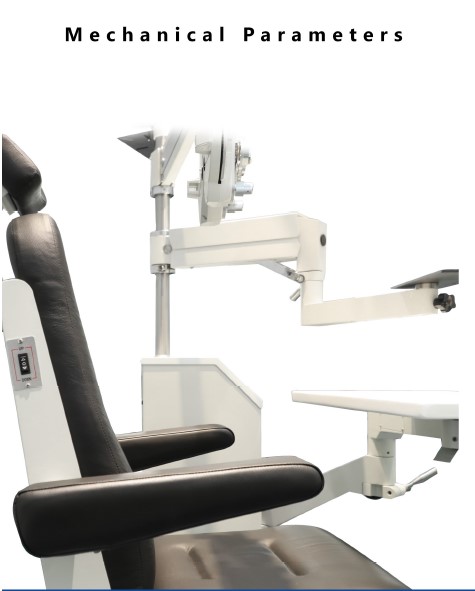

Phoroptor swing arm:
Swing angle (up and down)±30°
Rotary arm: rotation angle 0°-300°
Up and down moving range: 900mm(lowest point)+600mm
Max load:30kg
The curvature of instrument:
Swing angle (up and down)±40°
The first rotary arm rotates at an Angle360°
The second rotary arm rotates at an Angle0°- 300°
The tray can be 360 ° rotation
Up and down moving range:780mm(lowest point)+600mm
Max load:30kg
Projection arm
Angle of rotation for rotary arm360°
The tray can be 360 ° rotation
Up and down moving range:1030mm(lowest point)+500mm
Max load:10kg
Table size
350mm x 200mm x 25mm(Can be customized, maximum size is 700mm x 400mm x 40mm)
Max load:50kg
Table movement range
within a semicircle with a radius of 824mm; vertical movement: 716mm (lowest point) + 300±5mm
Table rotational angle
The first rotary arm rotates at an Angle0°- 180°;
The second rotary arm rotates at an Angle0°- 360°
The third rotary arm rotates at an Angle0°- 180°
Table-board rotational angle: 360°
Seat parameter
Lifting range 568mm(lowest position+140+5mm)
Headrest adjusting range 250mm
Seat rotation angle 0-3602
Footrest height from ground: minimum 88mm
Backrest adjusting angle 80-180
Max. load:150kg
Documents
Download
BrochurHHOU-7025
VIDEOS
HHOU-7025 Ophthalmic Refraction Chair Unit Full Video
HHOU-7025 Ophthalmic Refraction Chair Unit Instrument Stand Video
HHOU-7025 Ophthalmic Refraction Chair Unit Chair Functionality Video
