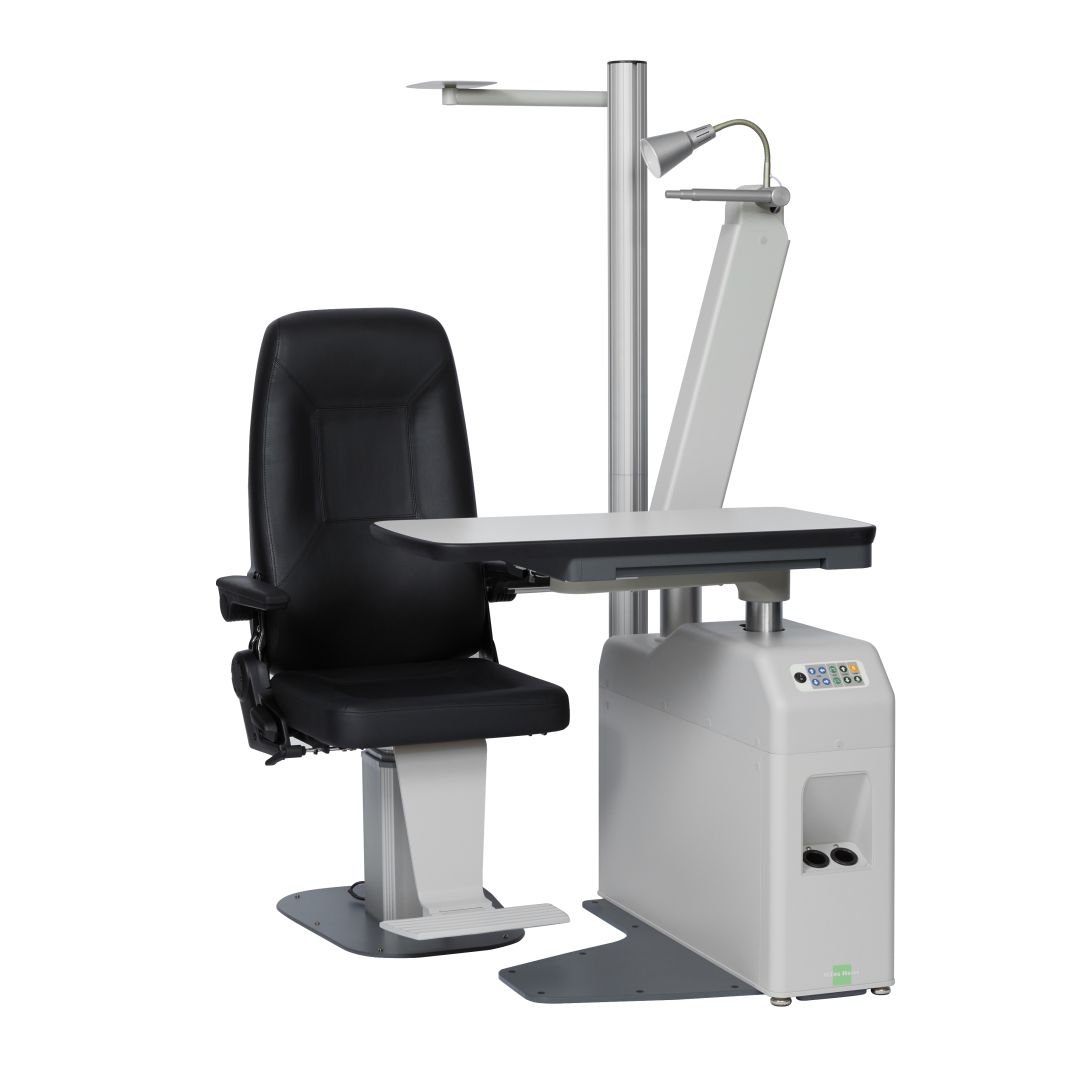

HHOU 7037 Refraction Units


  • 2 Instruments(Slit Lamp & Auto Keratometer) Table with Auto Phoropter Arm.
  • 2 instruments or appliances to mount at a time.
  • It can change examination mode just by sliding away or pull the table.
  • HHEC 800 Recliner Chair release the stress of your neck caused by keeping your head tilting backward.
  • Table unit of this model can load 2 instruments like slit lamp and Refractometer at the same time and mount phoropter arm onto the phoropter arm, auto or manual, up to 3 instruments or appliances in all.
  • As well, the tilt function of HHEC 800 chair is more useful when patient lie on the back for better treatment to both doctor and patient.
  • Right Handed Available Only.

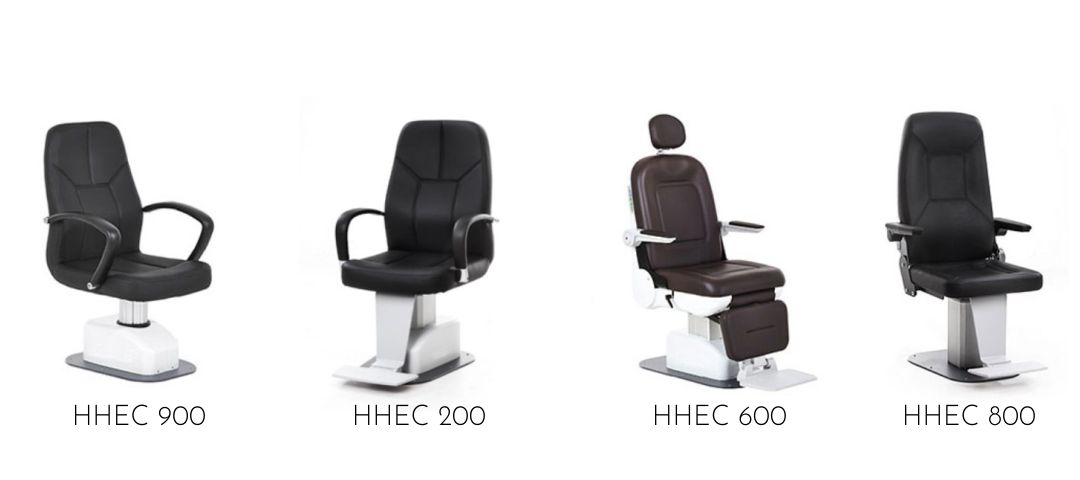

Applicable Chairs

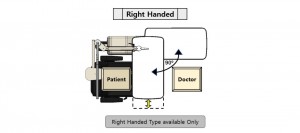

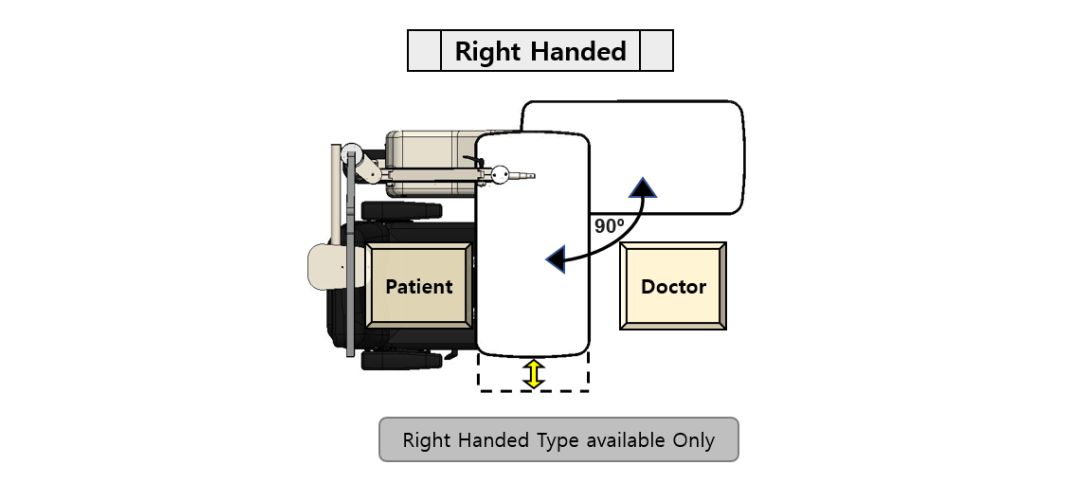

Right Handed Available Only

2 Instruments Mount Table

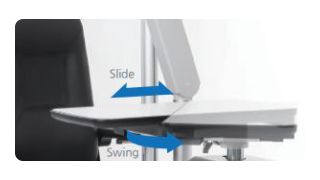

Slide-In/Out & Swing Table

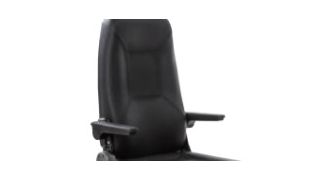

Motor-Activated Chair

This chair is made of all eco-friendly material and processed. It features reclinig function offering the comfort posture to patient when treated, For doctor.

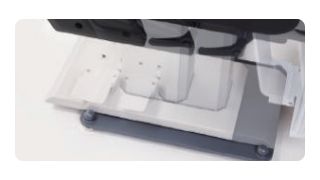

Slide Chair(HHOU 7038)

The unit chair can move forward or backward by pushing down the foot pedal (option)

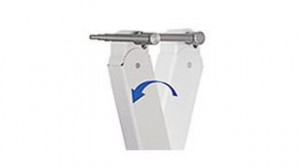

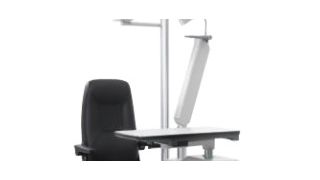

Powered Phoropter Arm

Power-motored Phoropter can be moved forward or bacward through Touch Pad Controller or Remote (option)

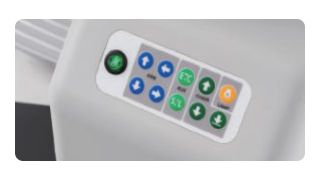

Touch Control Pad

This touch pad on the table unit is very usefully used to control Up/Down or chair and table, the migration of phoropter arm LED Light On/Off.

Recharging Slot

Refraction Unit has 2 slots to charge the hand-held Retinoscopes as is supporting 2 brand as defaults, "WelchAllyn & Neitz". In case of another brand such as "Keeler and Heine", it is required extra charge due using side PCB.

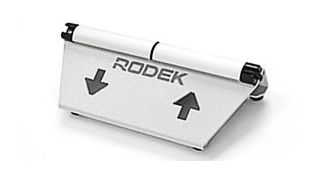

Foot Switch

In addition to touch control pad, you can move chair up/down with this foot switch.

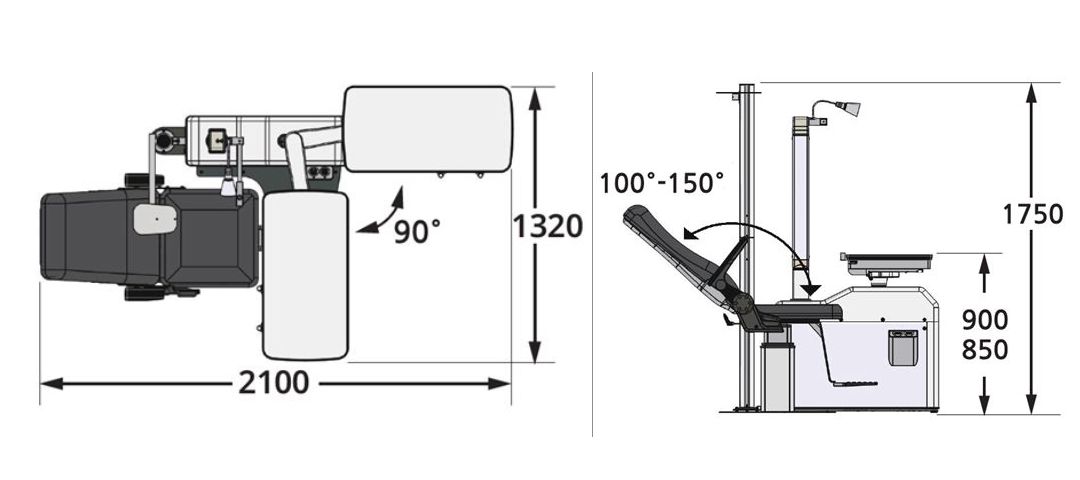

Specifications: HHOU 7037
External Dimensio 1400(W)*1150(D)*1750(H)
Table Size 870*440 or 870*420
Table Height 800 or 850 or 900
Input Power AC110 or 230V/ 50 or 60Hz
Power Consumption 260VA
Table Rotation Angle, Slide stroke 90°, 360mm
Phoropter Hanger Up/Down Stroke & Speed 200mm, 15mm/sec
Allowable Loading Weight of Table 30kg
Product Weight 130kg
External Dimension 650(W)*900(L)*1230(H)
Chair Travel Height Min.490 ~ Max.740
Up/Down Stroke & Speed 250mm, 20mm/sec
Allowable Loading Weight of Chair 160kg
Chair Dead Weight 52kg
Total Weight (Unit + Chair) 182Kg
