HHOU 7039 Refraction Units - Hans Heiss

HHOU 7039 Refraction Units

Features

  • Compact Size for 1 Instrument (Auto-Keratomter) table with Auto Phoropter Arm.
  • 1 Instruments Refraction Unit & Chair.
  • It is a compact product that enables effective ophthalmologic examination in a narrow space.

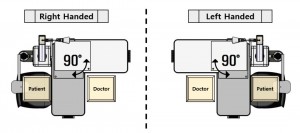

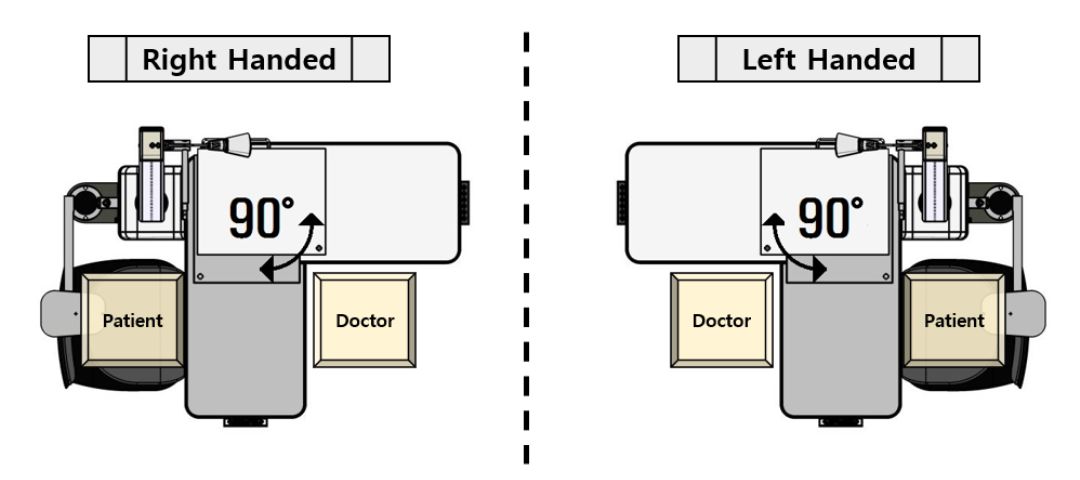

  • Left Handed & Right Handed are both available.

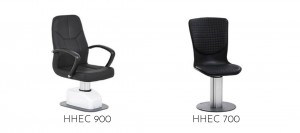

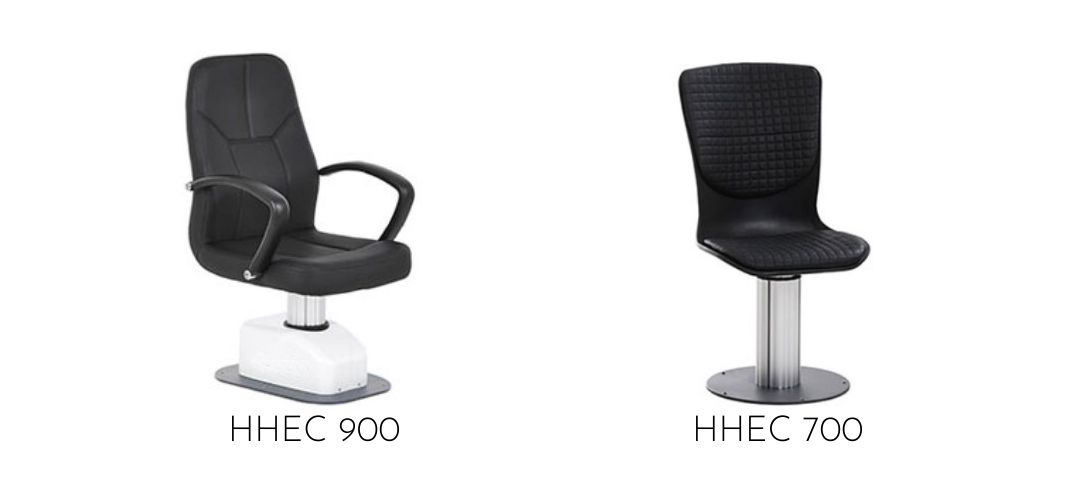

Applicable Chairs

Left Handed & Right Handed are both available

The Table Torates 90 Degrees

It is a esay to acces the test subject by attaching a table with a rotating structure.

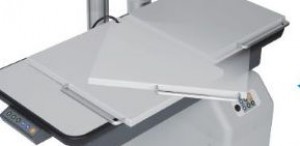

Ref/Keratometer Table

Especially designed to improve user.

Control Panel & USB Port

There is Control Panel with easy operation and USB Port which can be charged with smart phone or table PC for management checking data.

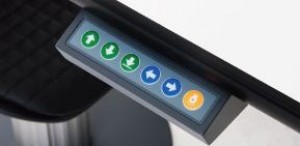

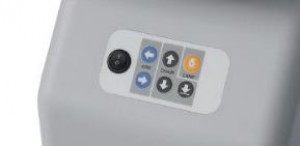

Table Switch

Able to control functions of unit chair as central control system

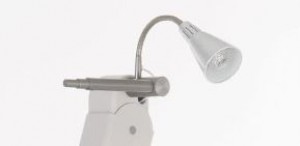

LED Lamp & Hanger

Select short distance LED lamp and make minimizing power consumption and secure semi-permanent durability. It looks clean because there is the cover which can arrange phoropter.

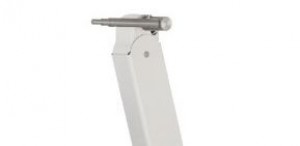

Rotation of Phoropter Arm

The auto arm function makes the Phoropter test easier.

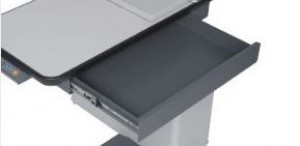

Built-In Drawer

This unit has a drawer under the table to keep operating appliances in. This saves you the space and time.

Built-In Drawer

This unit has a drawer under the table to keep operating appliances in. This saves you the space and time.

The Table Torates 90 Degrees

It is a esay to acces the test subject by attaching a table with a rotating structure.

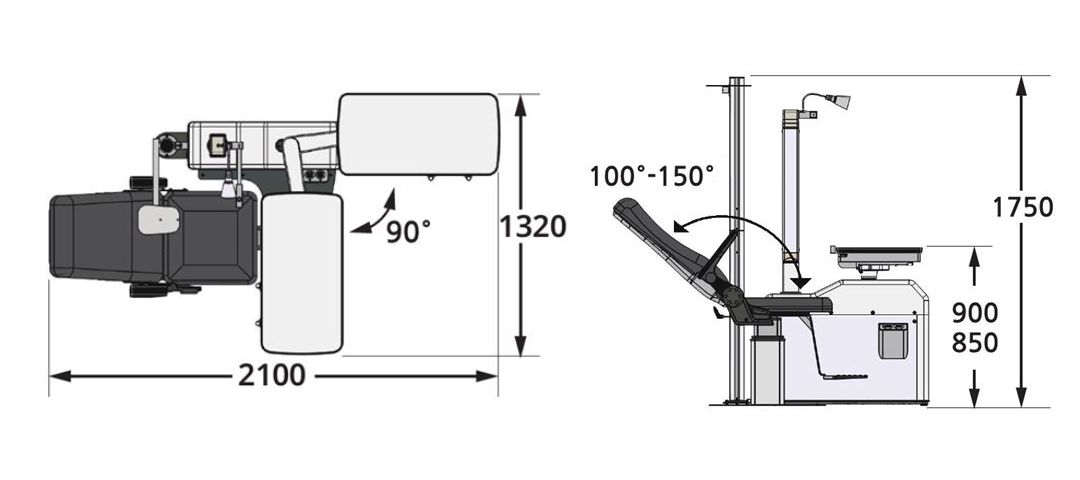

Specifications: HHOU 7039
Unit
External Dimension 900(W)*1370(D)*1750(H)
Table Size 900*420
Table Height 780
Rated Voltage AC110 or 230V/ 50 or 60Hz
Power Consumption 200VA
Table Rotation Angle 90°
Drawer Size 546(W)*350(D)*55(H)
Allowable Loading Weight of Swing Table 20kg
Product Weight 70kg
Chair
External Dimension 460(W)*490(D)*870(H)
Seat Height Min.420 ~ Max.670
Up/Down Stroke & Speed 250mm, 15mm/sec
Allowable Loading Weight of Chair 150kg
Product Weight 18kg
Total Product Weight (Unit + Chair) 95Kg
