HHOU 7041 Refraction Units - Hans Heiss

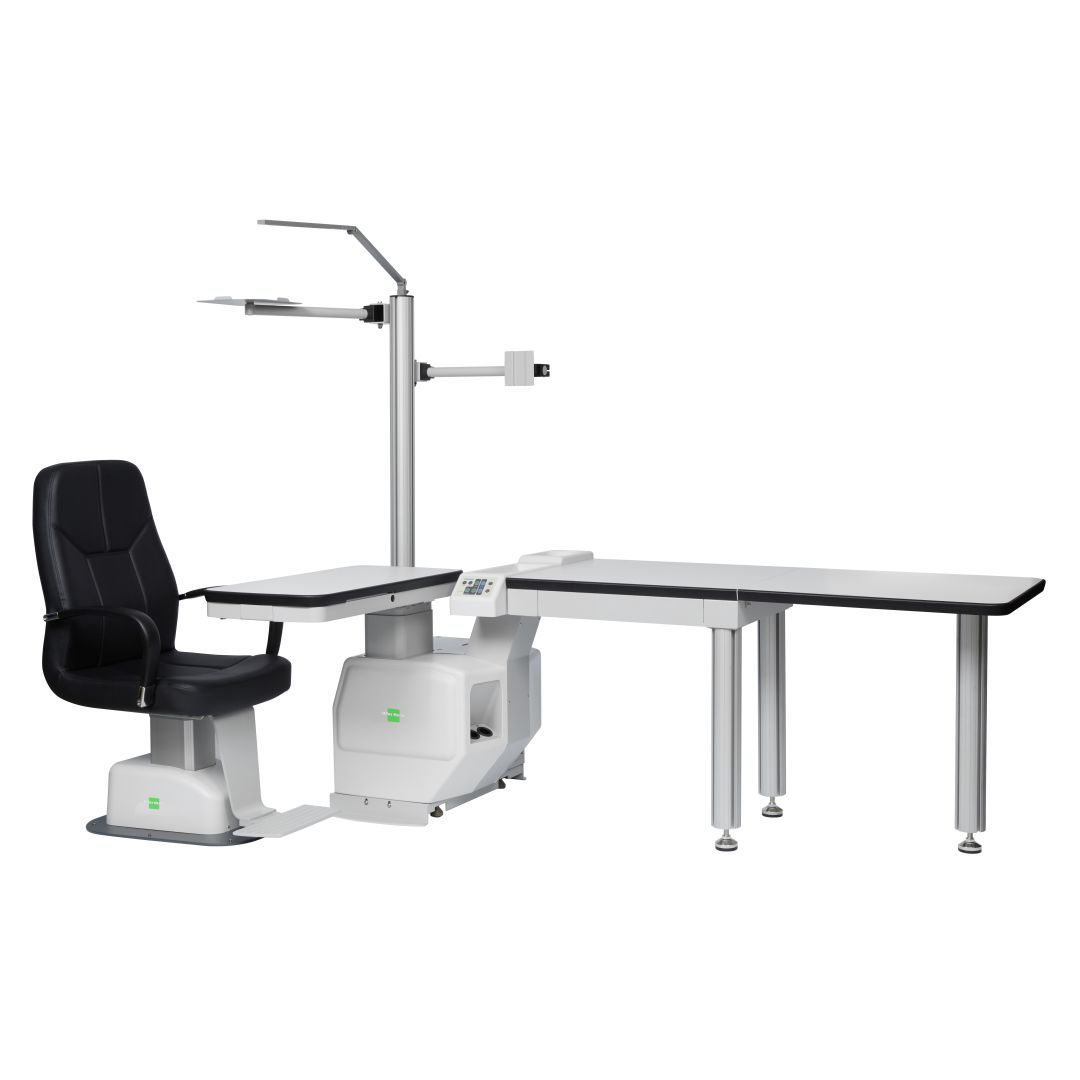

HHOU 7041 Refraction Units

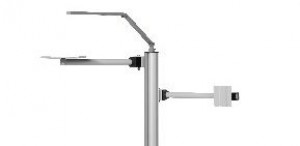

  • 1 Instrument (Slit Lamp) table with Counter Balanced(Manual / Classic) Phoropter Arm
  • 2 types are available depending on your preferred arrangement of instruments, to-the-left(clockwise) or to-the-right(counter-clockwise).
  • Work table can slide to treatment or recession position according to your operation mode.
  • Free voltage power supply to slit lamp allows any brand slit lamp to be applied.
  • Buit-in D/C power slot is ready to recharge retino- or microscope of any brand in like Welch, Allyn, Neitz, Keeler, Heine.
  • In addition to touch control pad in the main unit, a foot switch(optional) can be applied to control the height of chair unit.
  • Touch control pad has another full-down key-pad to lower the chair down at the lowest.
  • Left Handed & Right Handed are both available.

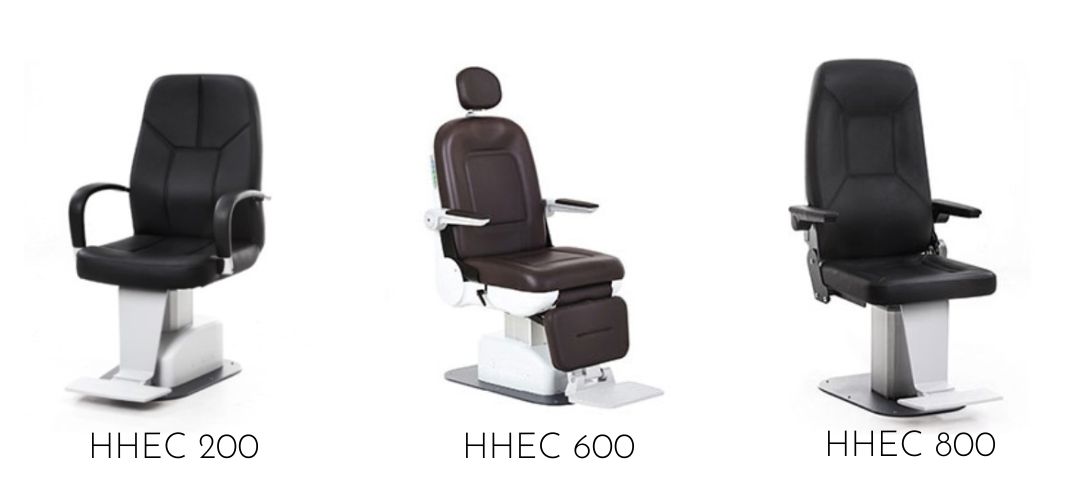

Applicable Chairs

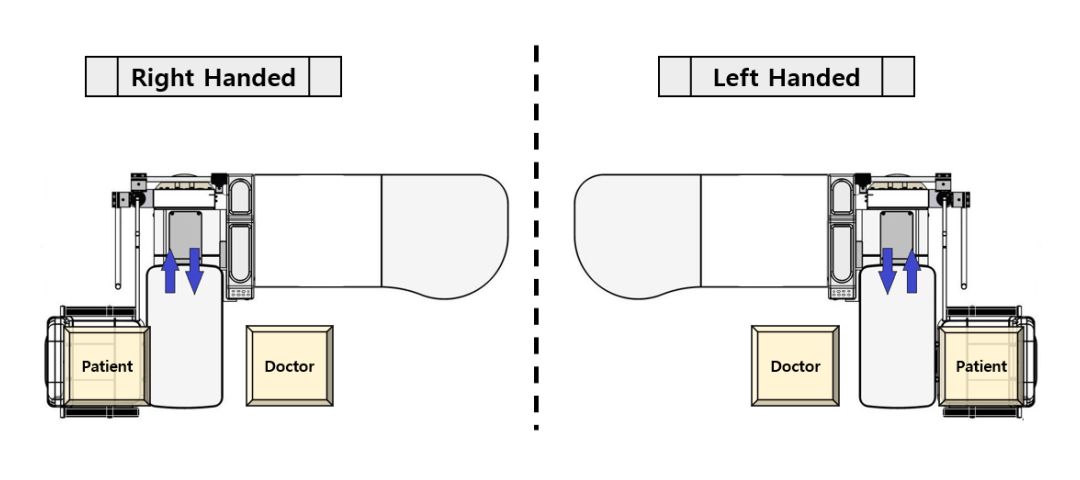

Left Handed & Right Handed are both available

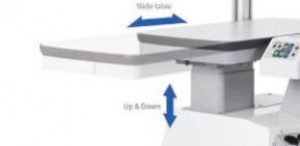

Slide, Up/Down of Work Top

The slide table is convenient to use thanks to the one-touch unlocking device. The slide method minimizes the doctor's movement, and allows the doctor to adjust the height of the table, which helps reduce fatigue.

LED Lamp & CP Installation

No glare and minimal power consumption and semi-permanent durability by using LED lamp. Able to equip with CP for monitor of video display and for eyesight test of the Slit Lamp.

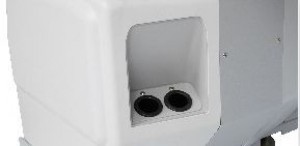

Recharging Socket Slot

“Refraction Unit has 2 slots to charge the hand- held Retinoscopes such as “WelchAllyn, Neitz, Keeler and Heine” Rodek is supporting 2 brand as defaults, “WelchAllyn & Neitz”. But we are also able to provide another 2 brands, “ Keeler and Heine” without extra charge only when requested by the customer. Be sure let us know before we make the unit because we will have to use different PCB for Keeler and Heine.”

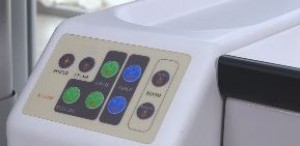

Touch Control Pad and Saddle Tray

This convenient appliance allows you to control all functions of unit at a place including a room lighting, And tray in the saddle keeps a small and frequently using tools.

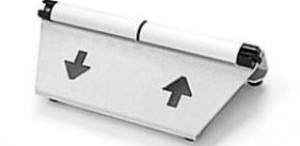

Foot Switch

This model can also benefit from using this foot switch to control the height of chair.

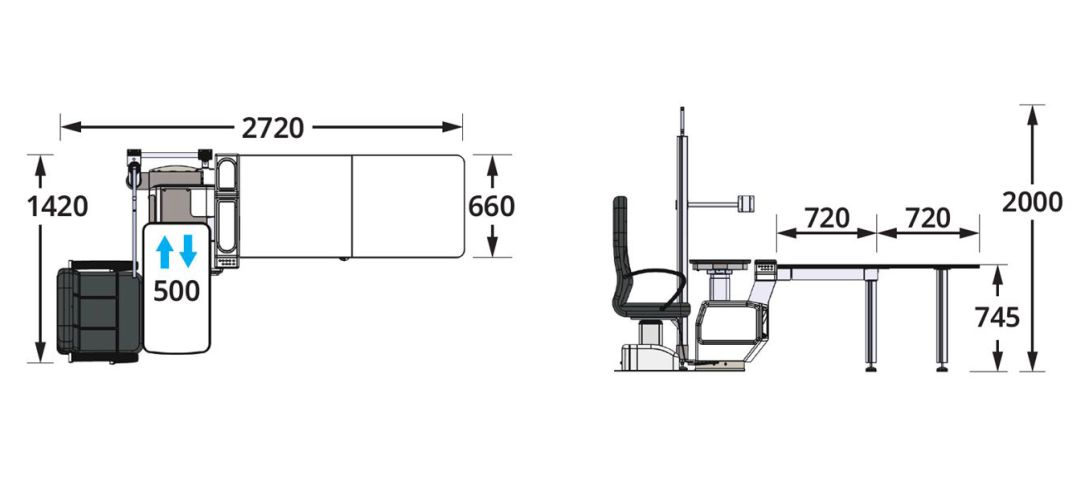

Specifications: HHOU 7041
Unit External Size 1400(W)*2400(D)*2000(H)
Slide Table Size 830*440
Table Height Min.750 ~ Max.915
Table Up & Down Spee 25mm/sec
Table Sliding Strok 500
Allowable Loading Weight of Tabl 30kg
Rated Voltage AC110~220V 50/60Hz
Power Consumption 350VA
Product Weight 165kg
Chair External Siz 620(W)*780(D)*1080(H)
Chair Seat Height Min.490 ~ Max.740
Chair Up/Down Stroke & Speed 250mm, 20mm/sec
Allowable Loading Weight of Chair 135kg
Product Weight 41kg
Total Product Weight (Unit + Chair) 206Kg
