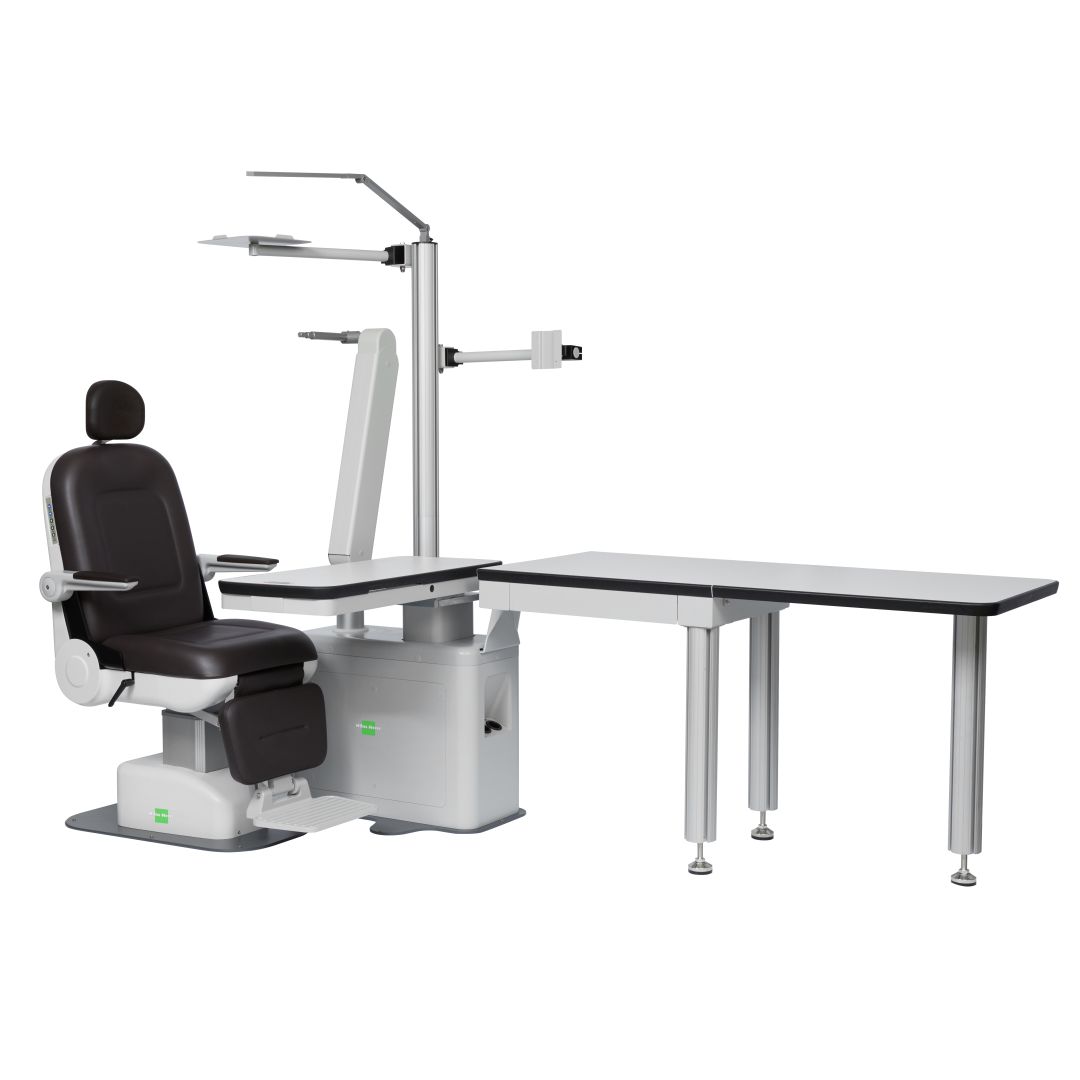

HHOU 7043 Refraction Units - Hans Heiss

HHOU 7043 Refraction Units


  • 1 Instrument (Slit Lamp) table with Counter Balanced(Manual / Classic) Phoropter Arm
  • 2 types are available depending on your preferred arrangement of instruments, to-the-left(clockwise) or to-the-right(counter-clockwise).
  • Work table can slide to treatment or recession position according to your operation mode.
  • Free voltage power supply to slit lamp allows any brand slit lamp to be applied.
  • Buit-in D/C power slot is ready to recharge retino- or microscope of any brand in like Welch, Allyn, Neitz, Keeler, Heine.
  • In addition to touch control pad in the main unit, a foot switch(optional) can be applied to control the height of chair unit.
  • Touch control pad has another full-down key-pad to lower the chair down at the lowest.

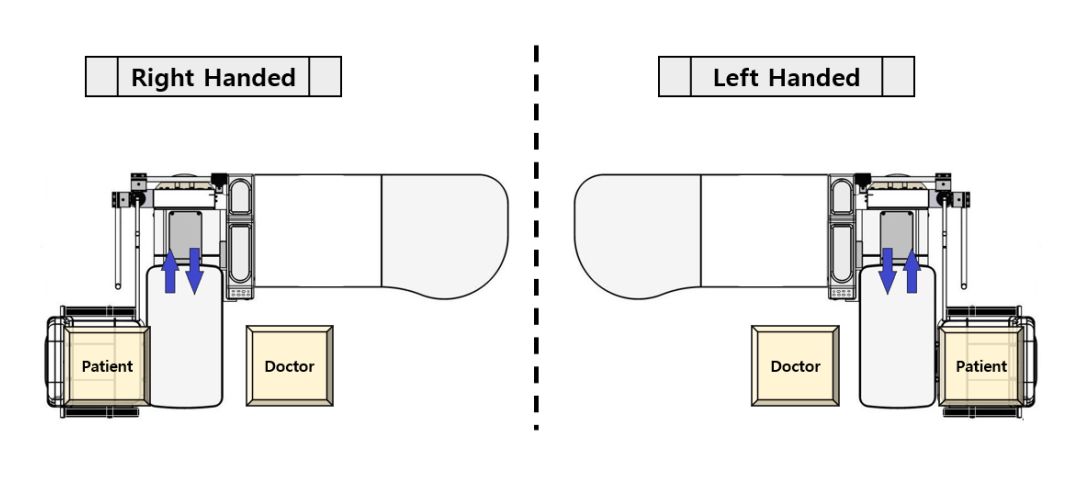

  • Left Handed & Right Handed are both available.

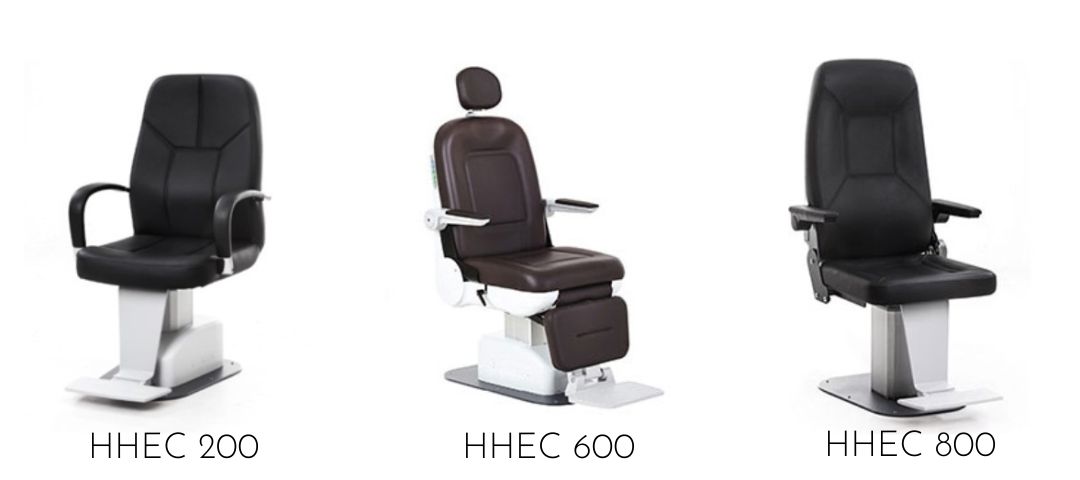

Applicable Chairs

Left Handed & Right Handed are both available

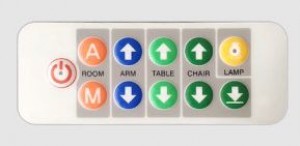

Touch Control Pad

With this touch control pad, you can control a room light, the migration of phoropter arm, Up/Down of table and chair and LED Lighting all. You don't have to move around to do this bothersome jobs.

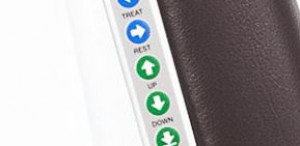

Independent Chair Control Pad

The independent and additional control pad of HHEC 600 offer the same function as the main touch control pad concerning the chair control.

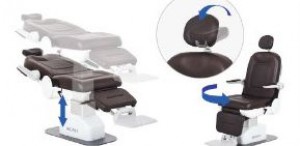

HHEC 600 Recliner Chair

This chair can recline backward at 170 degree at maxin addition to up/down and swivel when this function is added optionally. As well, head rest reclines too. With this function, doctor can concentrate on his operation while a patient lie on his back with comfort.

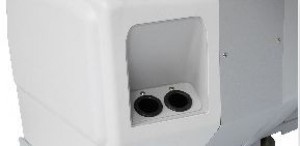

Recharging Slot

“Refraction Unit has 2 slots to charge the hand- held Retinoscopes such as “WelchAllyn, Neitz, Keeler and Heine” Rodek is supporting 2 brand as defaults, “WelchAllyn & Neitz”. But we are also able to provide another 2 brands, “ Keeler and Heine” without extra charge only when requested by the customer. Be sure let us know before we make the unit because we will have to use different PCB for Keeler and Heine.

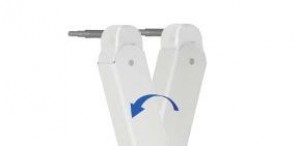

Powered Phoropter Arm

The Power Phoropter Arm save your time and space whenever changing the arm position. Furthermore, the desired angle cab be changed easily by touching the position button.

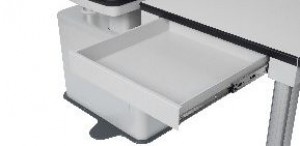

Built-In Drawer

This unit has a drawer under the table to keep operating appliances in. This saves you the space and time.

Foot Switch

With this, you can control the height of chair without the touch pad of the main unit. This is useful to an assistant to manage the operation room while doctor concentrate on patient care.

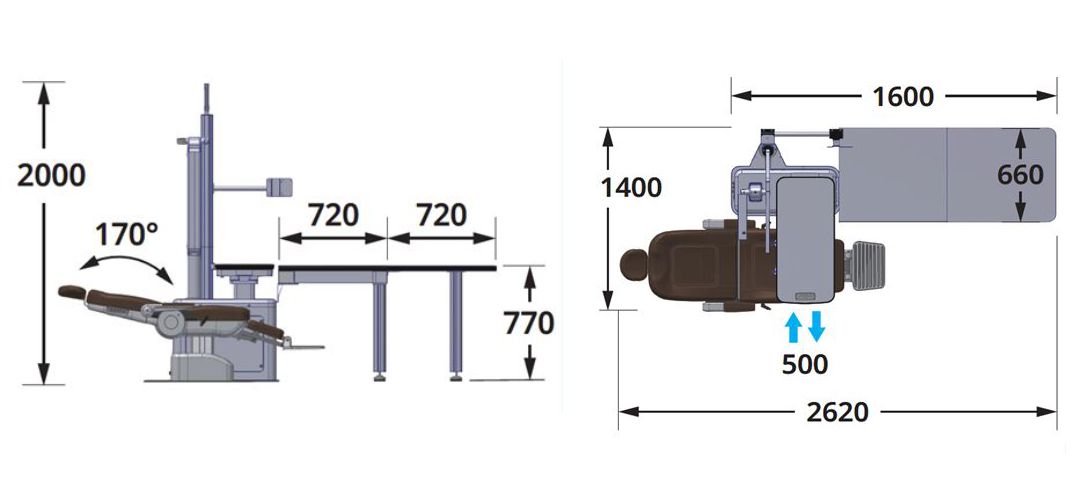

Specifications: HHOU 7043
Unit External Size 1400(W)*1600(D)*2000(H)
Slide Table Size 870*400
Table Height Min.700 ~ Max.860
Table Up & Down Speed 25mm/sec
Table Sliding Stroke 500
Allowable Loading Weight of Table 30kg
Phoropter Hanger Rotaion Angle 34° ~ 40°
Rated Voltage AC110~220V 50/60Hz
Power Consumption 250VA
Product Weight 130kg
Chair External Size 640(W)*960(D)*1220~1550(H)
Chair Seat Heigh Min.500 ~ Max.830
Chair Up/Down Speed 15mm/sec
Seat Reclining Angle 110° / 170°
Headrest Reclining Angle / Strok 90° / 150°
Rotation Chair / Armrest 350° / 90°
Allowable Loading Weight of Chai 135kg
Product Weight 90kg
Total Product Weight (Unit + Chair) 220Kg
