Auto chart projector LED ACP-900 - UNICOS

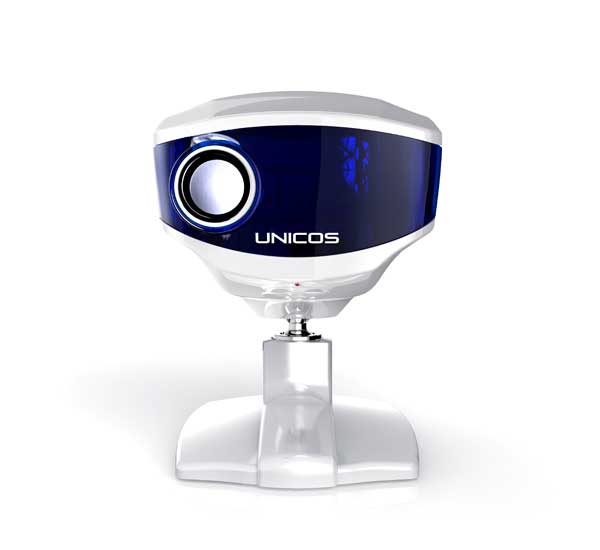

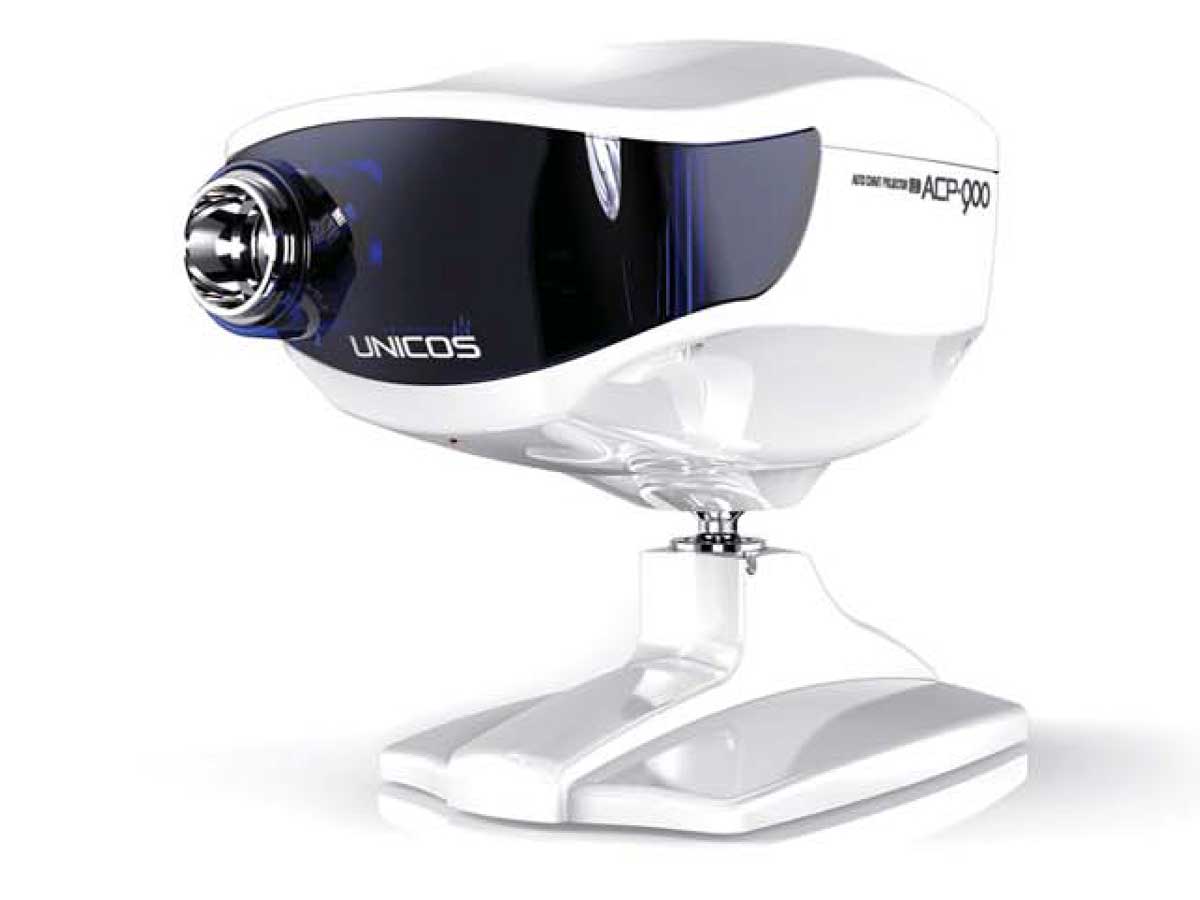

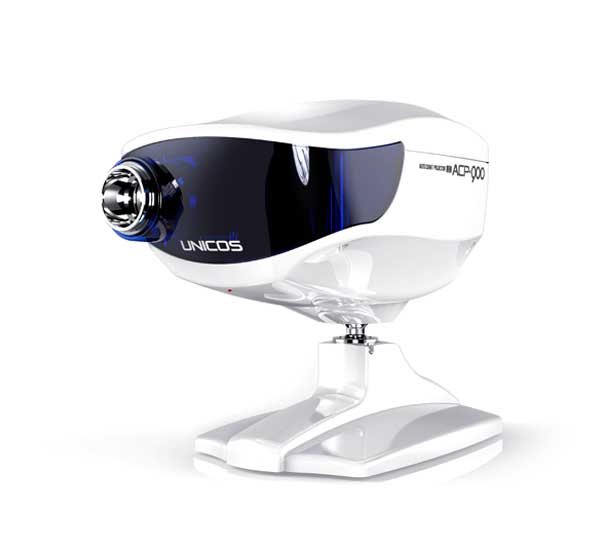

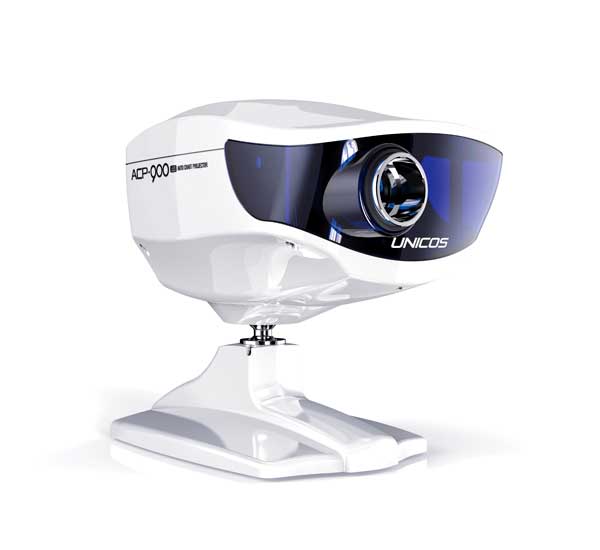

Auto chart projector LED ACP-900

The UNIQUE of UNICOS LED Chart.

Various and Perfect Projection Charts.
Four different types with 40 charts may show clear and bright images for a proper vision test.

Chart Projector using LED

The color of LED may be altered according to customer’s preference.

LED to be applied to ACP-900 provides more clear, bright, and precise chart images.
No need to change lamp because of long life cycle.
The color of LED may be altered according to customer’s preference.

Speedy Chart Switch

Prompt and fast Charts alternation time may allow an effective optometry environment for inspectors.

Remote Control

Using remote control makes chart change more comfortable and stable.


Attractive Design

Rounded body and a blue-colored front make it more modern.


Small Size and Light Weight

Downsizing and light weight make better use of a space effectively.

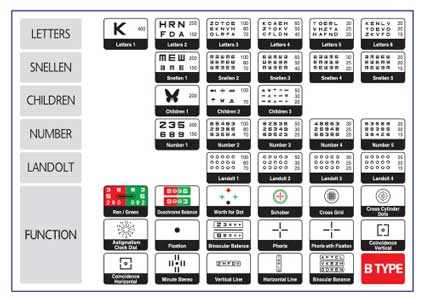

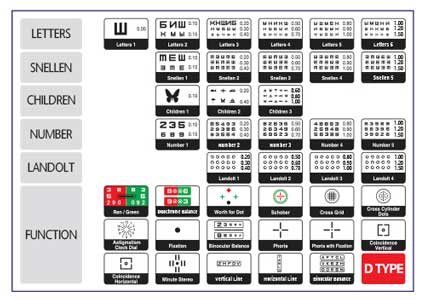

Chart Type ( A / B / C / D )


(Auto Chart Projector)

Number 1 Brand in the world

UNICOS is the first developed company for Auto Chart Projector in Korea and has the highest technology and accumulated production experience which was already proved by world wide market.

LED light source

Semi-permanent lifetime LED light source, Brighter and clearer

Clear and precise projection chart

Four different types of chart shows clear and bright images for your right vision test

Comforatable operation

A remote controller and fast chart change make operator comfortable and stable

Innovation design

Downsizing(30% Reduction comparing with ACP-700
Light weight(3.44kg, 27% lighter than ACP-700

Outstanding Features

  • The first development with the highest technology and accumulated production Experience
  • Clear & precise projection chart
  • Various Chart : ACP-900 with 41 chart
  • Attractive design
  • Comfortable operation by remote control and fast chart change
  • Various and flexible chart type
Specifications: ACP-900
Chart
40 Selections
Chart Selection Speed
Average 0.2 Sec.
Mask
1 Open, 5 Horizontal lines, 8 Vertical Lines, 21 Single Letters
Filter
Red / Green
Projection Distance
2.0 ~ 7.0 M (3M is standart)
Projection Magnification
30X (at 5m)
Tilt Angle
Ball Joint ( ± 15°)
Lamp
5V 4W (LED)
Power Source
100 - 240 V ~, 50 / 60 Hz
Power Consumption
45 VA
Auto - Off Functio
5 ~ 10 Minutes after
Dimensions
Main body : 290(W) X 186(D) X 198(H) mm
Table Stand : 169(W) X 365(D) X 82(H) mm
Remote Controler : 20(W) X 64(D) X 195(H) mm
Net Weight
3.62 Kg / (Body : 3.18Kg + Stand : 0.44Kg)
Remote Controler : 110g
Standart Accessories
Dust cover, Metal screen (400mm x 350 mm)
Spare fuses 2EA, Batteries (AA Sized) 2EA
Power cable, Allen wrenches (2.5 mm and 5mm)
Operation Manual
Optional Accessories
Red / Green Glasses, Polarization Glasses
Interface
RS-232 connector for simultaneous control of each chart, mask and R /G filter by a digital refractor's operation panel.
