Vision Screener HVS-001

Vision Screener HVS-001.

Protecting vision by detecting abnormality.

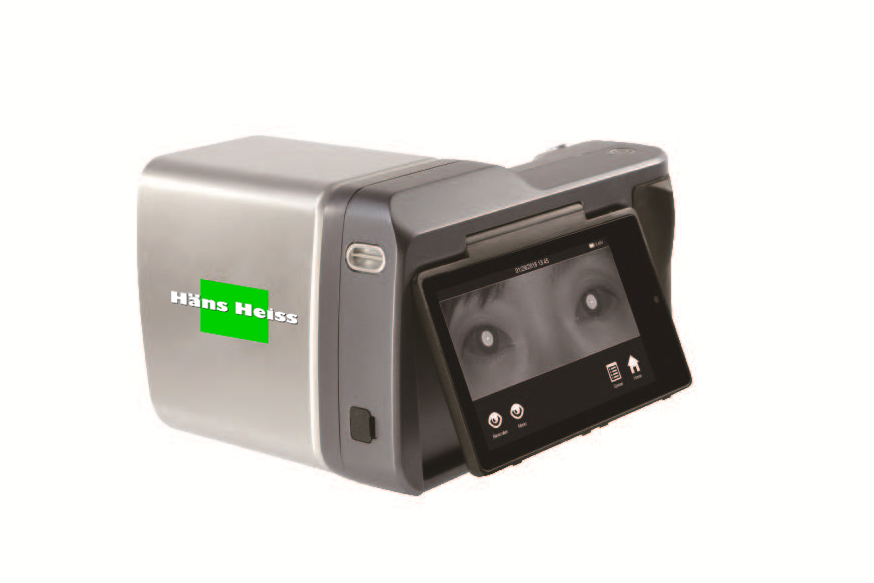

The Cell vision screener V100 is a portable diagnostic device designed for clinicians to quickly detect vision abnormalities on patients from 6-month old to adults. Cell can screen both eyes at once from a distance of 1 meter. Once the pupils are in focus, the device will start to calculate automatically and deliver results within 1 second. The touch screen allows users to operate conveniently like using a smart phone.


  • Flip screen facilitate convenient vision measuring
  • Interesting sounds to attract children
  • Super user-friendly with minimal user training required
  • Automated screening provides thorough, objective, and easy-to-understand results
  • Capable of dealing with mass screening events
  • Wireless data transfer by wifi

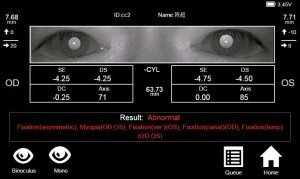

  • Quickly deliver testing results in 1 second


Quick detection

Cell quickly detects the potential suspicion of following common problems:

  • Myopia (nearsightedness)
  • Hyperopia (farsightedness)
  • Astigmatism (blurred vision)
  • Anisometropia (unequal refractive power)
  • Strabismus (eye misalignment)
  • Anisocoria (unequal pupil size)

Patient Management Software

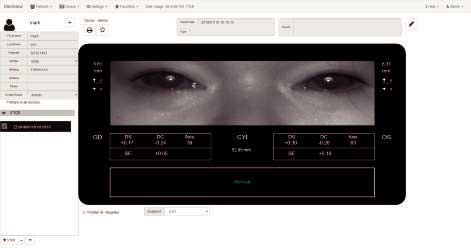

Mediview is the patient management system to help clinicians manage patient records and images and data collected by devices developed by MediWorks.

The testing result delivered by Cell can be quickly transferred to Mediview via wifi connection.

Specifications: HVS001


Model No. HVS001
Minimum Pupil Size 4mm
Automated Distance Sensing 100 cm ±5cm
Measuring Range SPH -9.00D ~+7.00D in 0.25D/0.01D increments
  CYL -3.00D ~+3.00D in 0.25D/0.01D increments
Axis 1~180°
Pupil Size 4~ 9mm,Accuracy 0.1mm
Pupil Distance 35 ~ 80mm,Accuracy 0.1mm
Gaze Measurement 0-20 Degrees
Measuring Time 1 second
Data Transfer Wifi
Screen 4.3"LCD touch screen
Power Li-ion battery X2, 3.7V/3400mAh
Charging Port Micro USB
Power Adaptor 100~240VAC,50/60HZ
Working Time 5 hours
Charging Time 5 hours
Infrared Illumination Spectrum 800nm ~880nm
Fixation Target Audible sound and flashing lights
Targeted Patient from 6-month infant to adults
Weight 800g
