RVS-100 Vital Signs Monitor

RVS-100 Vital Signs Monitor

RVS-100 is a versatile, intuitive touch screen vital signs monitor which measures pulse rate (PR), oxygen saturation (SpO2), non-invasive blood pressure (NIBP) and temperature (oral/axillary probe). The flexible, modular design offers many configurations and settings to suit the needs of hospitals and clinics as well as office based and long-term care settings.



<

Advantages of the RVS-100

The aim of the EWS is to improve patient outcomes by identifying at risk patients who need urgent medical attention and intervening early to prevent clinical deterioration. This system involves the assignment of numeric values to several physiologic parameters (i.e. temperature, respiratory rate, Spo2). RVS-100 can be programmed with NEWS (National Early Warning Scores), MEWS (Modified Early Warning Scores) and also has 5 customisable profiles which can be set by the end-user if they have different parameter values.

The RVS-100 Vital Signs Monitor

The device has ‘Monitor‘, ‘Spot Check‘ and ‘Triage‘ profile options, as well as a ‘Demo’ mode. Continuous Monitoring is designed for monitoring patients over time and includes physiological and technical alarms. Spot Check is designed for taking a single set of vital signs measurements on a patient. Patient information can be entered and managed, and while technical alarms are still available, physiological alarms are disabled. Triage is designed for rapidly taking vital signs measurements on many patients. Patient information is disabled, in addition to physiological alarms. ‘Demo’ mode demonstrates how each measurement mode works.

Features and benefits

Hardware

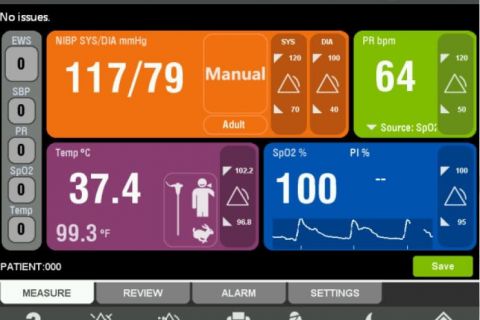

  • Large 8“ full HD colour TFT-LCD screen displays large numbers and bright colour-coded parameters so that vital signs can be seen clearly and interpreted easily.
  • Screen is visible in both dark and lit rooms.

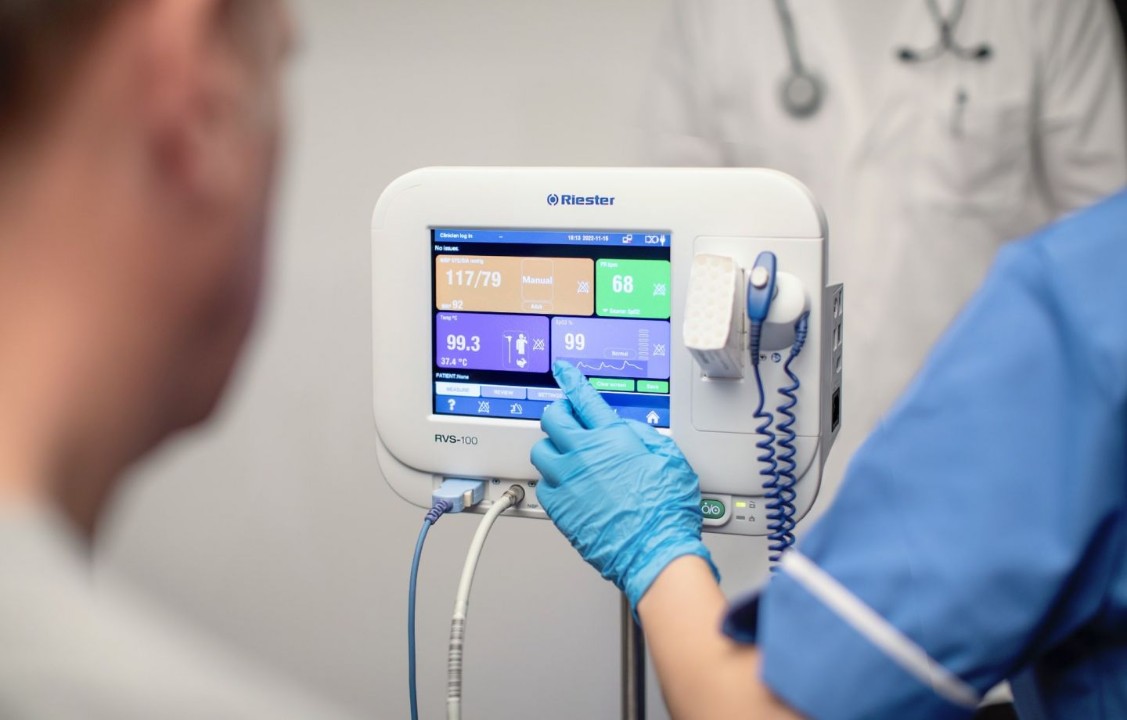

  • The touch screen and intuitive user interface makes it quick and easy for patient information to be entered and settings amended as required.

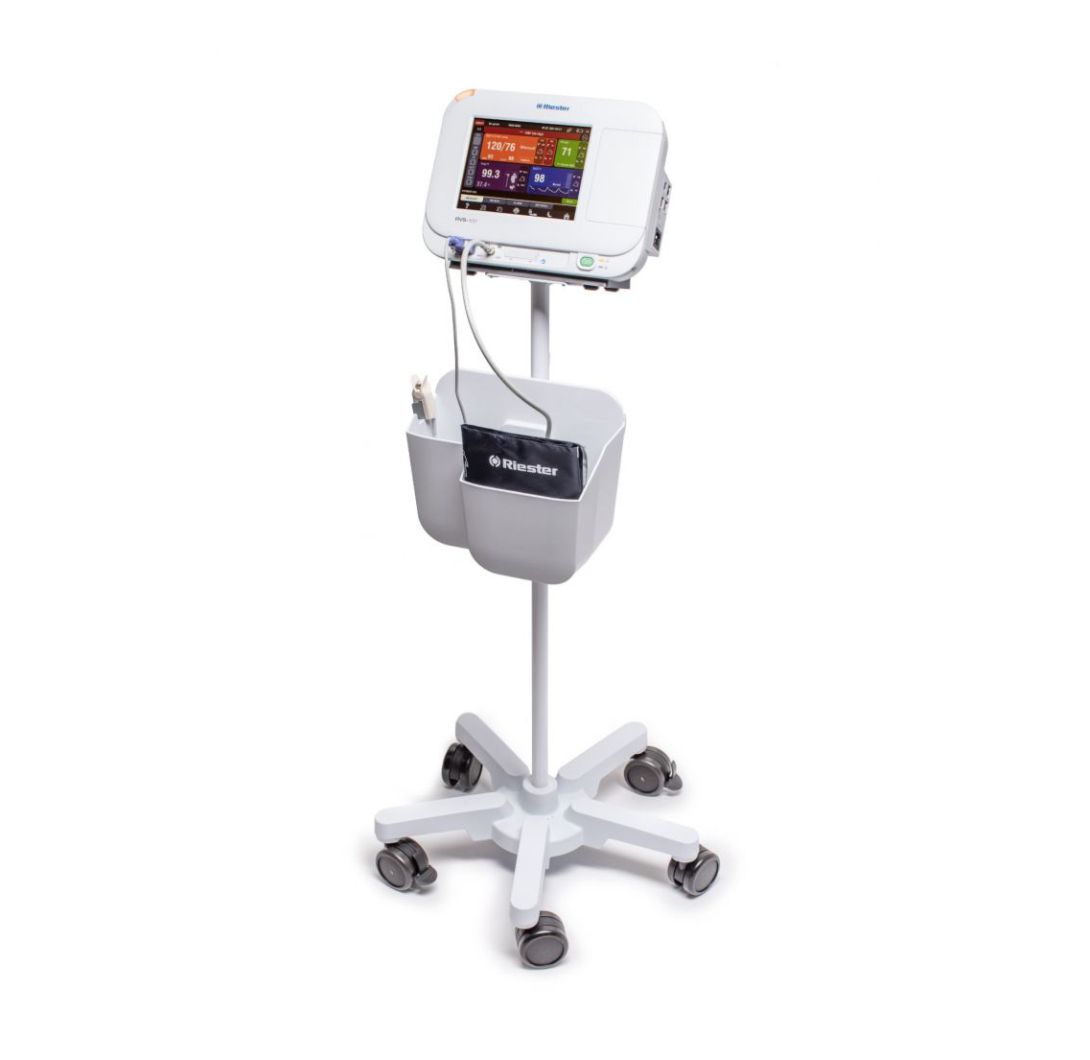

  • The modular design is chosen by the customer around their needs, starting with the choice between a table/mobile stand or wall mounted, through to the optional accessories like a printer.
  • Can be plugged into the mains or powered off the battery for 17 hours
  • Riester is committed to providing reliable clinical measurements, including the choice of SpO2: Riester, Nellcor or Masimo

Software

  • RVS-100 is programmed with EWS: NEWS, MEWS and 5 customisable profiles which can be set by the end-user if they have bespoke requirements.
  • Serve a large patient population with the ability to save up to 1,000 patient records, with up to 5,000 measurements per patient.
  • Can be used on all patient types: adult, paediatric and neonate.
  • RVS-100 can communicate through a wired or wireless connection to the hospital’s EMR/EHR, according to the HL7 standard.
  • Software languages available: Chinese, Danish, English, French, German, Italian, Polish, Portuguese, Spanish (Europe) and Traditional Chinese.
Specifications: RVS-100

RVS-100

Power supply 100 – 240 V AC, 50/60 Hz
Battery Lithium-Ion battery,
rechargeable, 10.8 V DC, 6,600 mAh.
Charging time to a 100%: 6 hours
Operating time approx. 11 hours (new and fully charged battery at 25°C ambient temperature with connected SpO2,Temp, and NIBP on
AUTO mode (15 minutes interval)
Low battery indicator, Charging battery indicator
Monitor dimensions 303 x 230 x 110 mm (11.93 x 9.05 x 4.33 in)
Monitor weight 3600 g (7.94 lb) inc. temperature module, printer

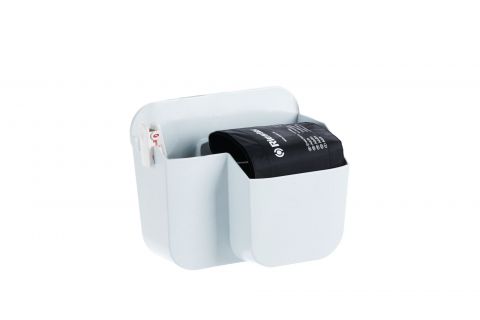

Basket dimensions 270 x 225 x 200mm (10.63 x 8.86 x 7.87 in)
Alarm Visible LEDs (Yellow, Red, Blue, Green, Orange) Audible Speaker Gives audible alarm, QRS tone Supports Pitch Tone and multi-level volume Alarm tones meet the requirement of IEC 60601-1-8. Alarm Pressure: 45 dB to 85 dB test distance is 1 meter from the tone

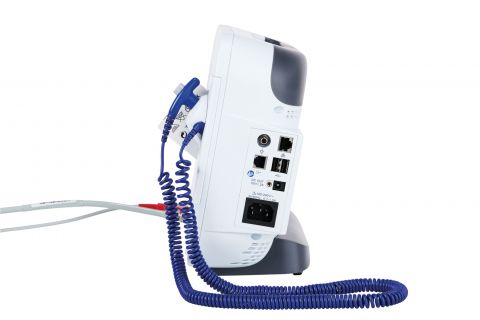

Ports 1 x AC power inlet
1 x standard RJ45 interfaces.100 BASE-TX, IEEE 802.3
4 x USB ports
1 x Equipotential grounding point
1 x RJ11 connector for nurse call
DC out port 15V/1.2 A

NIBP (non-invasive blood pressure)

Measuring method Automatic oscillometric
Measurement range Adult
SYS 30 – 270 mmHg, DIA 10 – 220 mmHg, MAP 20 – 235 mmHg
Paediatric
SYS 30 – 235 mmHg, DIA 10 – 220 mmHg, MAP 20 – 225 mmHg
Neonate
SYS 30 – 135 mmHg, DIA 10 – 110 mmHg, MAP 20 – 125 mmHg
Cuff pressure range 0 – 280 mmHg
Resolution 1 mmHg
Pressure accuracy Static ±3 mmHg
Clinic ±5 mmHg, standard deviation ≤ 8 mmHg
Pulse rate range 40 – 240 bpm
Pulse rate accuracy 1 bpm
Initial inflation pressure Adult 160 mmHg, Pediatric 130 mmHg, Neonate 75 mmHg
Double overpressure protection (hardware and software)
Adult 297 ± 3 mmHg, Pediatric 252 ± 3 mmHg, Neonate 147 ± 3 mmHg
Alarm range SYS 0 – 300 mmHg
DIA 0 – 300 mmHg
MAP 0 – 300 mmHg

SpO2 – Riester

Measurement range 0 – 100%
Resolution 1%
Accuracy ±2% (70 to 100%)
±3% (40% to 69%)
Unspecified (0% to 39%)
Alarm range 0 – 100%
Average time 4 sec, 8 sec, 16 sec
Pulse rate
Measurement range
20 – 250 bpm
Pulse rate Resolution 1 bpm
Pulse rate Accuracy ±1% or ±1 bpm which ever is greater

SpO2 – Nellcor

Measurement range 0 – 100%
Resolution 1%
Accuracy 70 – 100%: ±2% (adult, paediatric)
70 – 100%: ±3% (neonate)
0 – 69%: unspecified
Alarm range 0 – 100%
Average time 8 sec, 16 sec
Pulse rate
Measurement range
20 – 300 bpm
Pulse rate Resolution 1 bpm
Pulse rate Accuracy 20 – 250 bpm: ±3 bpm
251 – 300 bpm: unspecified

SpO2 – Masimo

Measurement range 0 – 100%
Resolution 1%
Accuracy 70 – 100%: ±2% (adult, paediatric, non-motion conditions)
70 – 100%: ±3% (neonate, non-motion conditions)
70 – 100%: ±3% (motion conditions)
0 – 69%: unspecified
Alarm range 0 – 100%
Average time 2 – 4 sec, 4 – 6 sec, 8 sec, 10 sec, 12 sec, 14 sec, 16 sec
Pulse rate
Measurement range
25 – 240 bpm
Pulse rate Resolution 1 bpm
Pulse rate Accuracy ±3 bpm (non-motion conditions)
±5 bpm (motion conditions)

RPT-100 (Filac 3000) Predictive Thermometer

Oral (Quick Mode) non-fever temps: 3 - 5 seconds, fever temps: 8 - 10 seconds
Oral (Standard Mode) 6 - 10 seconds
Axillary Mode 8 – 12 seconds
Rectal Mode 10 – 14 seconds
Direct Mode (all sites) 60 – 120 seconds
Measurement accuracy 35.5°C - 42°C
Direct Mode (all sites): ±0.1°C (±0.2°F)
Standard Mode (all sites): ±0.1°C (±0.2°F)
Quick Mode (oral only): ± 0.3°C (±0.5°)
