Ultra M2 Slit Lamp

Ultra M2 Slit Lamp

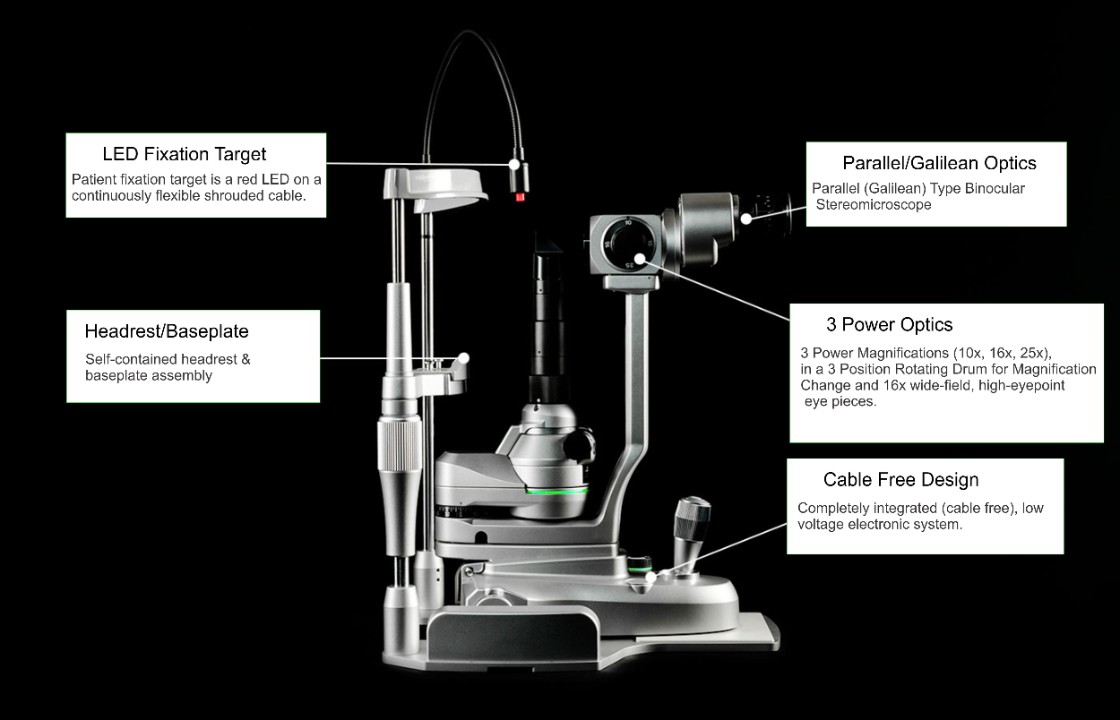

Our Ultra M2 slit lamp uses parallel (galilean) type binocular stereomicroscope and compact/horizontal for light source configuration (background illumination optional). The M2 conventional slit lamp features blue, red-free, blue LED correction light filters, 3 power magnifications (10x, 16x, 25x), in a 3 position rotating drum for magnification change and 16x wide-field, high-eyepoint eye pieces.

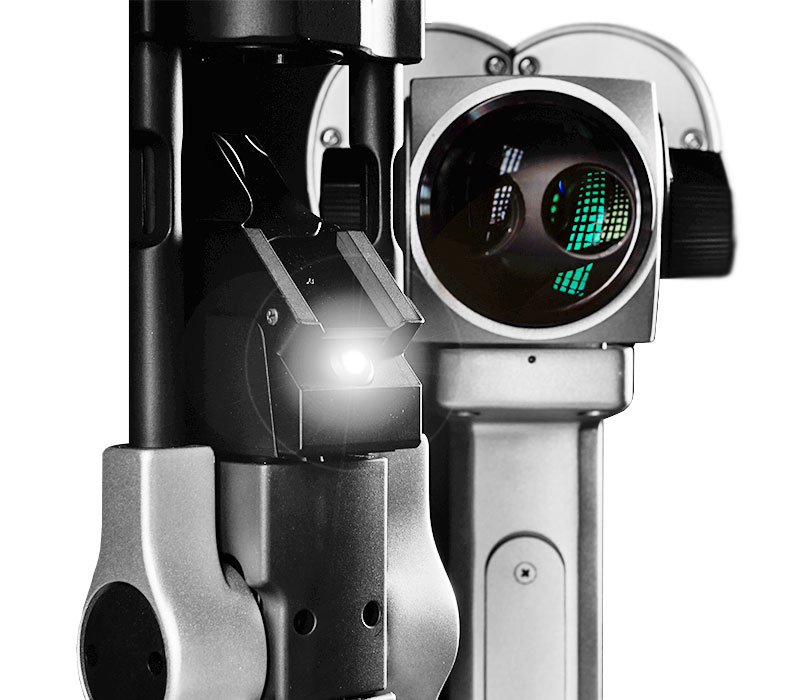

LED Illumination

The new LED illumination, with a color temperature of 3500 K, allows greater visibility and clarity of anatomy and tissue structure, with brighter and sharper light. A single element, high-luminance LED provides a beautifully consistent and uniform light compared to multiple element LEDs.

3 Power Optics

The M2 features 3-power Parallel / Galilean optics. The aperture diameter of the slit length has been extended, from 10mm to 14mm (continuously variable from 0-14mm), allowing a wider area of anterior segment illumination and also a wider field of view.

Cable Free Design

The Ultra M Slit Lamps are neat and compact with no exposed wiring, giving them a noticeably sleek and stylish appearance. Contemporary and durable finishes have been selected both for lasting application and patient appeal.

Self Contained Headrest

A self-contained headrest & baseplate assembly with a comfortable expanded chin rest design for easier patient access.

Specifications: Ultra M2 Slit Lamp

Ultra M2 Slit Lamp Specs

Technical Details

Type Binocular Stereomicroscope Parallel (Galilean)
Light Source LED
Light Source Configuration Compact/Horizontal
Background Illumination Not standard (option only)
Light Filters Blue, Red-free, Blue LED Correction
Slit Width 0-14mm continuous variable
Aperture Diaphragm Diameter (Ø) 14, 8, 5, 3, 0.3mm
Total # Power Magnifications 3 (10x, 16x, 25x)
Magnification Change 3 Position Rotating Drum
Eye Pieces 16x wide-field, high-eyepoint
Real Field of View (Ø) 23.3mm, 14mm, 8.8mm
Interpupillary Adjustment 52-82mm
Diopter Adjustment Range (+/-) 7 Diopters
Horizontal Coarse Movement 105mm
Horizontal Fine Movement 15mm
Vertical Movement 30mm
Fixation Light Source Red LED on Flexible Arm
Large Patient Chin Rest Not standard (option only)
Chinrest Elevation 85mm

Power

Power Supply AC100V-240V (+/-10%)
Power Consumption DC5V 2A

Weight

Mass (Approximate) 11kg
